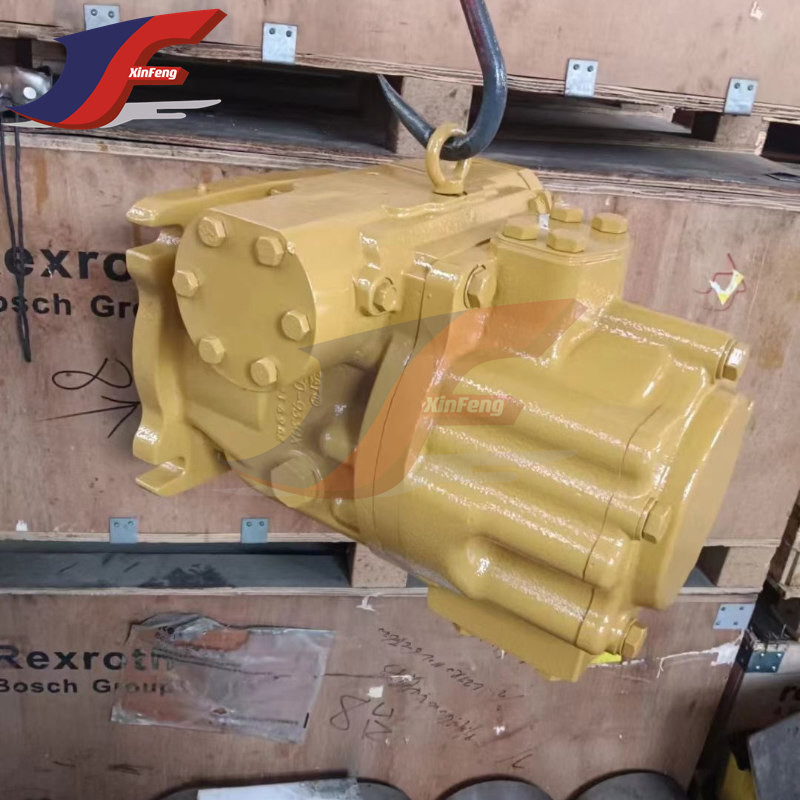

Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 4B-4158 | [4] | SCREW-DRIVE (NO 4X0.25-IN) | |
| 2 | 7Y-4224 | [1] | ORIFICE | |
| 3 | 8J-0101 | [1] | PLATE-NOTICE (HYDRAULIC OIL FILL) | |
| 4 | 006-0136 | [1] | KEY (SQUARE) | |
| 5 | 110-2973 | [2] | BEARING-SPECIAL ROLLER | |
| 6 | 232-3868 C | [4] | WASHER-BELLEVILLE | |
| 7 | 118-5805 | [1] | BEARING-SPECIAL RACE | |
| 8 | 137-5646 | [1] | SPACER (70.4X87.5X7.6-MM THK) | |
| 9 | 357-1728 C | [1] | SPACER (70.4X80X2.3-MM THK) | |
| 10 | 143-2006 | [1] | COVER AS | |
| 11 | 143-7319 | [1] | RACE-ROLLER BEARING | |
| 12 | 146-8990 | [1] | IMPELLER | |
| 13 | 146-8991 | [1] | SPACER (29X38X1.57-MM THK) | |
| 14 | 148-3548 | [1] | BEARING-SPECIAL RACE | |
| 15 | 150-4355 | [9] | PISTON AS | |
| 16 | 155-2251 | [1] | PLATE | |
| 17 | 158-3504 | [1] | SPOOL-CONTROL | |
| 18 | 159-7320 | [1] | PLATE-RETAINER | |
| 19 | 165-6062 | [2] | LINK (TIMING) | |
| 20 | 175-7887 | [2] | DOWEL | |
| 21 | 177-1405 | [1] | SPRING | |
| 22 | 185-3889 | [1] | SHAFT | |
| 23 | 187-9116 | [1] | BARREL AS-PUMP | |
| 23A. | 120-7508 | [9] | BUSHING | |
| 24 | 191-9247 | [1] | WASHER (19.15X31.65X2.36-MM THK) | |
| 25 | 198-2914 | [1] | NUT (3/4-32-THD) | |
| 26 | 214-2445 | [1] | SPRING | |
| 27 | 214-6489 | [1] | BALL (HOLD DOWN) | |
| 28 | 250-9328 | [1] | COVER | |
| 29 | 251-7828 | [1] | PLATE-PORT | |
| 30 | 252-4537 | [1] | HEAD-PUMP | |
| 31 | 263-7732 | [1] | HOUSING AS | |
| 124-1555 | [1] | PLUG | ||
| 32 | 264-0010 | [1] | RETAINER | |
| 33 | 267-3741 | [1] | ACTUATOR | |
| 34 | 267-3743 | [1] | BODY AS-PUMP | |
| 124-1555 | [1] | PLUG | ||
| 35 | 270-7898 J | [1] | SPRING | |
| 36 | 277-3551 | [1] | PLATE-ADAPTER | |
| 37 | 291-4865 | [1] | COVER | |
| 38 | 308-2613 | [1] | BRACKET AS | |
| 8T-3490 M | [1] | NUT-WELD (M10X1.5-THD) | ||
| 39 | 313-1284 | [1] | RETAINER AS | |
| 6V-3382 H | [2] | SEAL-LIP TYPE | ||
| 124-1555 | [1] | PLUG | ||
| 40 | 314-3243 | [1] | SWASHPLATE | |
| 41 | 316-1438 | [1] | CARTRIDGE AS | |
| 214-7568 | [2] | SEAL-O-RING | ||
| 42 | 322-2018 | [1] | SLIDE-ACTUATOR | |
| 43 | 373-1585 | [1] | COIL AS | |
| 9X-1813 E | SLEEVE (14-CM) | |||
| 9X-3401 | [2] | PIN-CONNECTOR (16-GA TO 18-GA) | ||
| 230-4012 | [1] | RECEPTACLE AS-CONNECTOR (2-PIN) | ||
| 44 | 030-4605 H | [1] | SEAL-O-RING | |
| 45 | 096-0008 M | [6] | BOLT-SOCKET HEAD (M16X2X140-MM) | |
| 46 | 162-2165 M | [4] | BOLT-SOCKET HEAD (M4X0.7X16-MM) | |
| 47 | 189-9763 H | [1] | SEAL-O-RING | |
| 48 | 1P-3709 H | [1] | SEAL-RECTANGULAR | |
| 50 | 2R-0239 H | [1] | SEAL-O-RING | |
| 51 | 3C-8388 | [2] | PIN-ROLL | |
| 52 | 3D-4603 | [1] | PLUG-PIPE | |
| 53 | 3J-0634 H | [1] | SEAL-O-RING | |
| 54 | 3J-1907 H | [3] | SEAL-O-RING | |
| 55 | 3J-7354 H | [1] | SEAL-O-RING | |
| 56 | 4J-5309 H | [3] | SEAL-O-RING | |
| 57 | 5A-3604 M | [3] | BOLT-SOCKET HEAD (M8X1.25X25-MM) | |
| 58 | 5H-6734 H | [1] | SEAL-O-RING | |
| 59 | 5P-8245 | [6] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 60 | 6F-7061 | [2] | DOWEL | |
| 61 | 6J-2680 | [1] | SEAL-O-RING | |
| 62 | 6S-3002 H | [1] | SEAL-O-RING | |
| 63 | 6V-3823 M | [6] | BOLT (M12X1.75X60-MM) | |
| 64 | 6V-4429 M | [4] | BOLT (M16X2X40-MM) | |
| 65 | 6V-5215 M | [3] | BOLT (M8X1.25X16-MM) | |
| 66 | 6V-5684 M | [6] | BOLT (M12X1.75X45-MM) | |
| 67 | 178-3707 M | [7] | BOLT (M16X2X50-MM) | |
| 68 | 6V-8243 | [1] | RING-RETAINING | |
| 69 | 7F-8607 H | [6] | SEAL-O-RING | |
| 70 | 7M-8485 H | [4] | SEAL-O-RING | |
| 71 | 8T-0267 M | [5] | BOLT-SOCKET HEAD (M6X1X12-MM) | |
| 72 | 9M-1974 | [3] | WASHER-HARD (8.8X16X2-MM THK) | |
| 73 | 9S-4181 | [4] | PLUG (1-5/16-12-THD) | |
| 74 | 9S-4191 | [3] | PLUG (9/16-18-THD) | |
| 75 | 9S-8002 | [1] | PLUG (7/16-20-THD) | |
| 76 | 9X-8268 | [7] | WASHER (17.5X30X3.5-MM THK) | |
| 77 | 2A-3630 | [2] | PIN | |
| AVAILABLE REPAIR KIT(S): | ||||
| 185-5352 H | [1] | KIT-SEAL | ||
| (ALSO INCLUDES O-RING SEALS) | ||||
| 338-1105 J | [1] | KIT-SPRING | ||
| (ALSO INCLUDES SPRING) | ||||
| C | CHANGE FROM PREVIOUS TYPE | |||
| E | ORDER BY THE CENTIMETER | |||
| H | KIT MARKED H SERVICES PART(S) MARKED H | |||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART |
