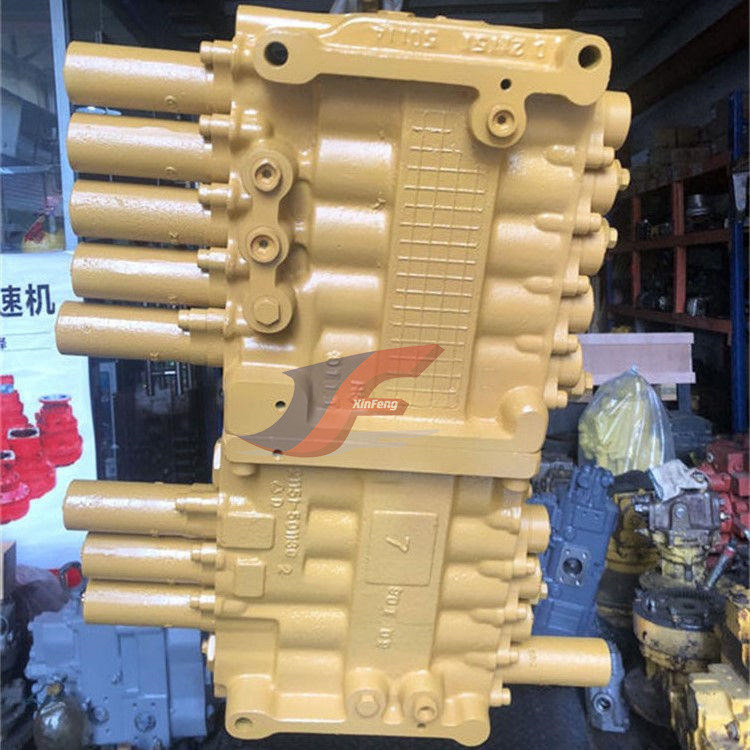

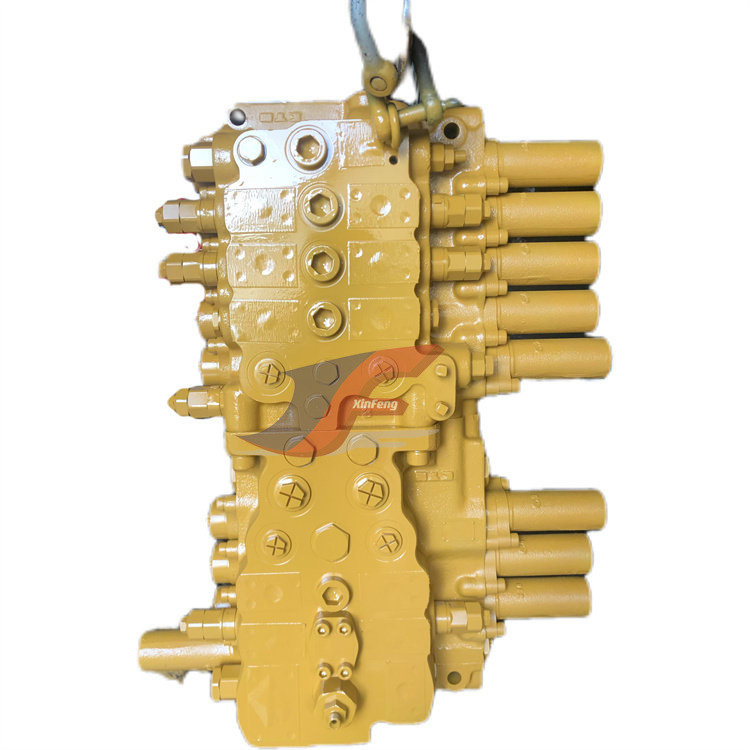

Control Valve E200B Main Control Valve 096-4489 099-1107 1R-8150 Main Valve
Product Description
| Pos. | Part No | Qty | Parts name | Comments |
| 1-286. | 096-4489 | [1] | CONTROL VALVE ASSY. | |
| 099-1107 | [1] | CONTROL VALVE ASSY. | ||
| 1-6. | 096-6023 | [1] | CHECK VALVE ASSY., L. H. | |
| 1 | 096-6040 | [1] | PLUG | |
| 2 | 096-6005 | [1] | O-RING | |
| 3 | 096-6041 | [1] | SPRING | |
| 4 | 096-6042 | [1] | VALVE | |
| 5 | 096-6043 | [1] | PLUG | |
| 6 | 095-1585 | [1] | O-RING | |
| 16 | 096-6015 | [18] | BOLT | |
| 17 | 096-5988 | [5] | CAP | |
| 18 | 096-5990 | [5] | SPOOL END | |
| 19 | 096-5989 | [10] | SEAT | |
| 20 | 096-5987 | [1] | SPRING | |
| 21 | 096-5982 | [10] | O-RING | |
| 22 | 096-5991 | [4] | SPRING | |
| 23 | 096-6032 | [4] | VALVE, RELIEF | |
| 25 | 095-0653 | [2] | BOLT | |
| 26 | 096-5996 | [1] | SPACER | |
| 27 | 096-5992 | [1] | O-RING | |
| N | NOT SUPPLIED INDIVIDUALLY |
Product Description
Control Valves play a critical role in the operation of machinery, powering a wide range of equipment used in industries such as construction, agriculture, and manufacturing.
Maintenance method
1. Replace the hydraulic oil, oil return filter element, and pilot filter element according to the prescribed maintenance period, and pay attention to whether there are iron filings or copper filings adsorbed on the filter element. When using a breaker, the hydraulic oil deteriorates more quickly and the replacement cycle should be shortened.
2. Do not work without oil for a long time. After replacing hydraulic oil or hydraulic components, pay attention to bleeding out the air. Pay attention to waterproofing, do not work in deep water, and do not directly rinse electrical components with water when cleaning.
3. Replace the gear oil of the slewing reducer and traveling reducer periodically.
