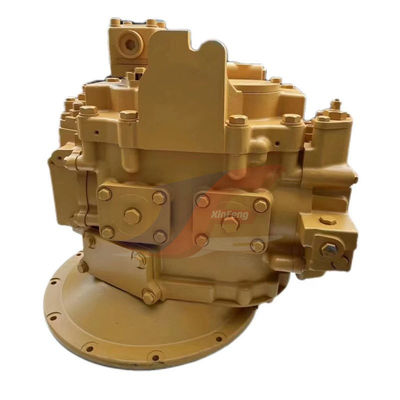

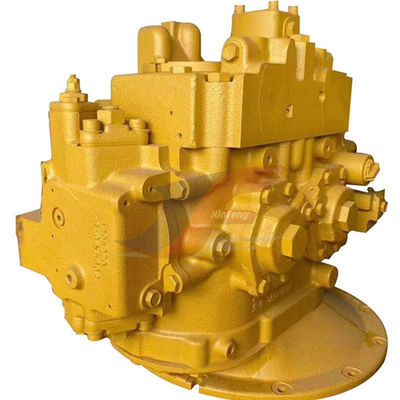

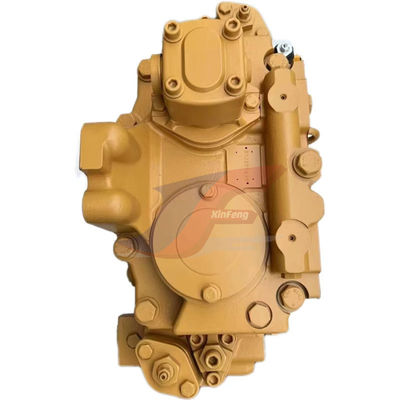

320C hydraulic pump 320C 320D Hydraulic Main Pump 272-6955 173-3381 202-9929
Product Descriptio
| 1 | 094-1882 | [5] | PLUG |
| 2 | 8T-4136 | [10] | BOLT (L=25mm) |
| 3 | 095-1578 | [2] | SEAL-O-RING (ID=9.80mm) |
| 4 | 095-0946 | [2] | RING |
| 5 | 129-7921 | [2] | RING |
| 6 | 150-5785 | [10] | DOWEL |
| 7 | 114-0491 | [2] | PISTON AS |
| 8 | 8T-5376 | [4] | SEAL-O-RING (ID=79.40mm) |
| 9 | 173-3498 | [1] | BARREL AS |
| 10 | 177-8740 | [1] | SEAL-O-RING (ID=385.60mm) |
| 11 | 096-1445 | [2] | PLUG |
| 12 | 160-4409 | [2] | ORIFICE |
| 13 | 158-9022 | [1] | COVER |
| 14 | 8T-3338 | [2] | SEAL-O-RING (ID-84.40mm) |
| 15 | 129-7859 | [2] | BEARING SET |
| 16 | 118-4057 | [18] | SPRING |
| 17 | 7Y-4215 | [2] | SPACER |
| 18 | 173-3427 | [2] | GUIDE |
| 19 | 173-3473 | [2] | PLATE |
| 20 | 177-2461 | [2] | SWASHPLATE |
| 21 | 173-3428 | [1] | BEARING |
| 22 | 177-2583 | [4] | BEARING |
| 23 | 129-7927 | [2] | BEARING |
| 24 | 129-7855 | [1] | GASKET |
| 25 | 173-3392 | [1] | SHAFT |
| 26 | 7M-8485 | [2] | SEAL-O-RING (ID=29.74mm) |
| 27 | 8J-4645 | [2] | PLUG |
| 28 | 3J-1907 | [1] | SEAL-O-RING (ID=11.89mm) |
| 29 | 9S-4191 | [1] | PLUG |
| 30 | 8T-4196 | [2] | BOLT (L=35mm) |
| 31 | 4I-1022 | [2] | ORIFICE |
| 32 | 094-1875 | [6] | DOWEL |
| 33 | 8T-4137 | [2] | BOLT (L=20mm) |
| 34 | 126-2016 | [1] | PUMP GP |
| 35 | 173-3496 | [1] | BARREL AS |
| 36 | 8T-4192 | [10] | BOLT (L=25mm) |
| 37 | 129-7854 | [1] | CASE |
| 38 | 173-3391 | [1] | SHAFT |
About Xinfeng Machinery (XF) parts:
Xinfeng Machinery Parts Company was established in 1998. It is a professional team composed of high-quality technical personnel integrating production, maintenance, sales, and service. It is committed to providing customers with high-quality and efficient services. It is headquartered in Guangzhou, China.
We have been engaged in the excavator industry for 25 years. We sell original used parts, rebuilt parts,original new parts, and OEM new parts for many types.We can provide many types for you to choose from. We can provide a quality-trusted full range of hydraulic pumps, travel motors, final drives, main control valves, swing motors, and engines for KOMATSU, , HITACHI, JOHN DEERE, VOLVO, CASE JCB, KOBELCO, NEW HOLLAND, SUMITOMO, KATO, BOB, DOOSAN, and HYUNDAI.
We provide a customer satisfaction guarantee on all our products. We have invested in providing only the highest-quality replacement parts to our customers. Develop a more broad business space together based on long-term, friendly, mutually beneficial, and win-win business relations.
Maintenance method
1. Replace the hydraulic oil, oil return filter element, and pilot filter element according to the prescribed maintenance period, and pay attention to whether there are iron filings or copper filings adsorbed on the filter element. When using a breaker, the hydraulic oil deteriorates more quickly and the replacement cycle should be shortened.
2. Do not work without oil for a long time. After replacing hydraulic oil or hydraulic components, pay attention to bleeding out the air. Pay attention to waterproofing, do not work in deep water, and do not directly rinse electrical components with water when cleaning.
3. Replace the gear oil of the slewing reducer and traveling reducer periodically.
4. Check the structure every day for cracks and deformation. When parking the excavator, pay attention to the surrounding environment. Park it on a solid, stable and hard surface. Do not park it near a river, a cliff or a hillside to prevent accidents.
5. When parking, the bucket cylinder is fully retracted and the bucket falls to the ground to prevent the cylinder from being hit.
If you encounter any technical problems with the excavator, you can consult us
