312C 312CL Excavator Hydraulic Pump 173-0663 1730663 SBS80

1 Sets
MOQ
Negotiable
Price
 312C 312CL Excavator Hydraulic Pump 173-0663 1730663 SBS80
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 312C 312D
Part Number: 173-0663 1730663
Place Of Origin: Japan
Weight: 160KG
Warranty: 6months
Delivery Time: 3days
Keyword: SBS80
Condition: Genuine Or OEM
Appliion: Excavator
Highlight:

312C Excavator Hydraulic Pump

,

313C Excavator Hydraulic Pump

,

173-0663

Basic Infomation
Place of Origin: Japan
Brand Name: Hitachi
Model Number: 312C 312CL 313C 315C
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 3 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 50-Sets/month
Product Description

Excavator 312C 312CL 313C 315C Main Hydraulic Pump SBS80 173-0663 1730663



Product Descriptio



Pos. Part No Qty Parts name
1 178-8802 [1] SHAFT-INPUT
2 176-0582 [1] BLOCK
3 173-1203 [1] PUMP GP-GEAR
4 225-6216 [1] GASKET
5 165-2804 [1] FLANGE
6 8T-4139 M [8] BOLT (M12X1.75X30-MM)
7 8T-4137 M [4] BOLT (M10X1.5X20-MM)
8 7X-2553 M [6] BOLT (M16X2X40-MM)
9 165-2801 [2] BEARING-ROLLER
10 165-3851 [4] BEARING-CRADLE
11 165-3847 [18] PISTON AS
12 165-2799 [12] SPRING
13 6V-7991 [1] SEAL-O-RING
14 165-3839 [1] BARREL AS
15 165-3852 [2] BEARING AS-NEEDLE
16 095-1663 [1] SEAL-O-RING
17 190-4896 [2] PLUG
18 207-2985 [2] ORIFICE
19 176-0581 [1] CASE
20 165-2793 [2] RETAINER
21 165-2794 [2] RETAINER-BALL
22 6V-8144 [2] RING-RETAINING
23 1J-6472 [2] RING-RETAINING
24 165-2802 [1] SEAL-LIP TYPE
25 8T-9599 [1] RING-RETAINING
26 1H-7339 [1] SEAL-O-RING
27 2H-9247 [2] SEAL-O-RING
28 8T-4185 M [4] BOLT (M10X1.5X50-MM)
29 8T-7547 M [4] BOLT (M8X1.25X30-MM)
30 165-3849 [2] CAM
31 176-8131 [2] SPACER-SPECIAL
32 165-2805 [2] BLOCK
33 165-3838 [1] BARREL AS
34 176-8132 [2] BEARING
35 8C-3338 [4] DOWEL
36 165-3853 [1] COVER
37 199-0518 [12] SEAL-O-RING
38 176-1026 [1] PLATE
39 222-2063 [1] SHAFT-DRIVE
40 4T-1860 Y [1] VALVE GP-SHUTTLE (BALL RESOLVER)
41 8T-4140 M [1] BOLT (M16X2X60-MM)
42 094-1882 [11] PLUG
43 9S-4191 [3] PLUG (9/16-18-THD)
44 3J-1907 [3] SEAL-O-RING
45 173-1168 Y [2] ACTUATOR GP-PUMP
46 094-1875 [10] DOWEL
47 111-9916 Y [1] VALVE GP-SOLENOID (PRESSURE REDUCING)(PUMP DESTROKE)
48 7I-2272 M [2] BOLT (M5X0.8X12-MM)

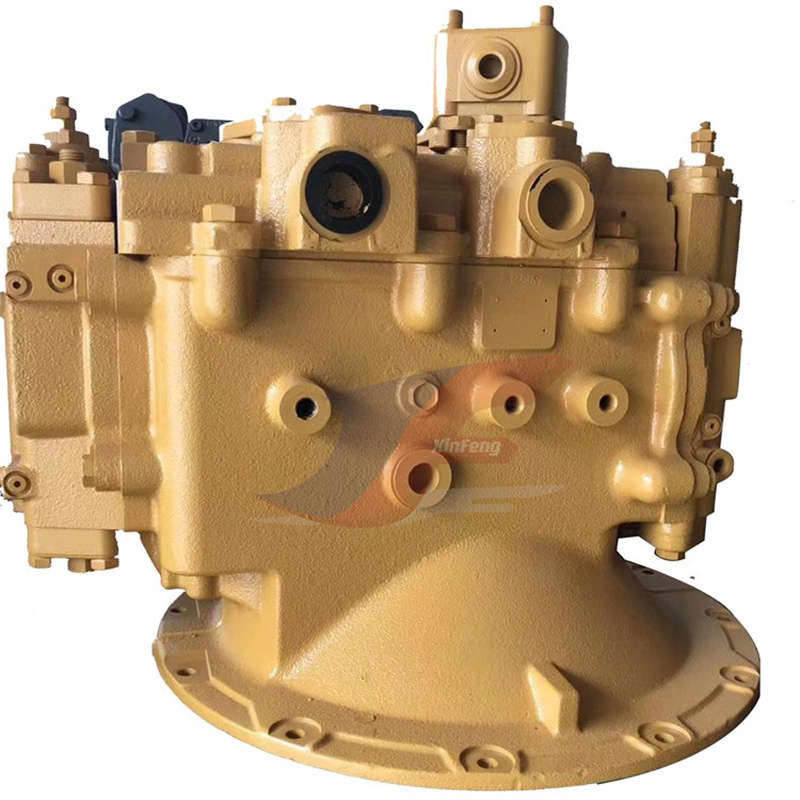

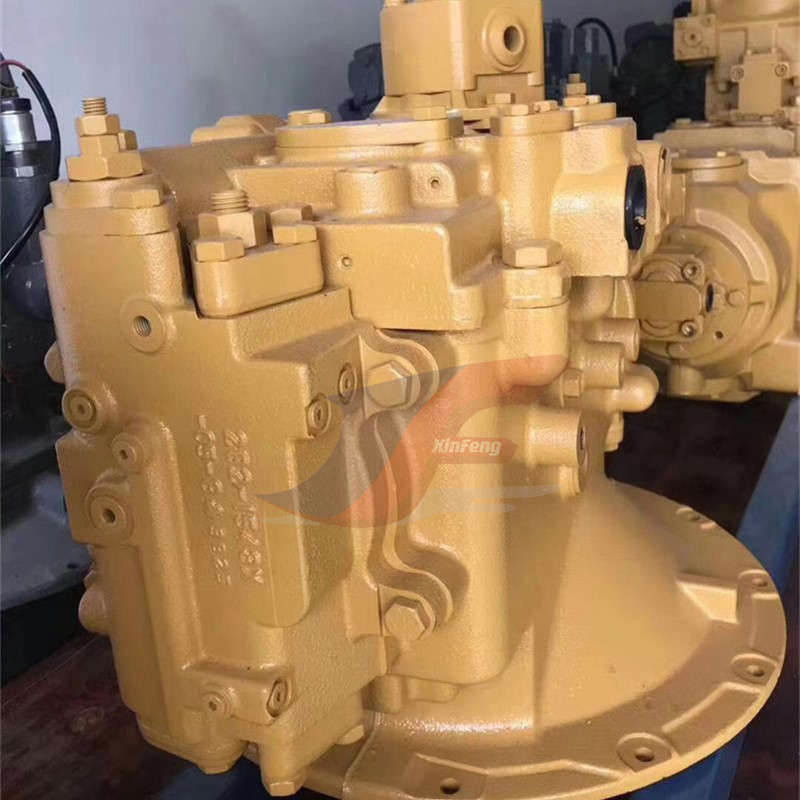

 312C 312CL Excavator Hydraulic Pump 173-0663 1730663 SBS80 0 312C 312CL Excavator Hydraulic Pump 173-0663 1730663 SBS80 1

Maintenance method

1. When the excavator is working, when the excavator makes abnormal sounds from the pump, the excavator vibrates, or the computer board displays a fault code or alarm, be sure to stop the machine and check whether it is caused by a pump failure.



2. When the operating environment temperature of the excavator is very low, be sure to let the excavator idle for more than 10 minutes after starting. Wait for the excavator temperature to come up before adding load to the excavator to ensure normal operation of the excavator. The hydraulic pump is working properly.



3. When the excavator is operating normally, you must always pay attention to whether the temperature of the excavator's hydraulic oil is too high? Is the excavator water temperature too high?



About Xinfeng Machinery (XF) parts:



Xinfeng Machinery Parts Company was established in 1998. It is a professional team composed of high-quality technical personnel integrating production, maintenance, sales, and service. It is committed to providing customers with high-quality and efficient services. It is headquartered in Guangzhou, China.



We have been engaged in the excavator industry for 25 years. We sell original used parts, rebuilt parts,original new parts, and OEM new parts for many types.We can provide many types for you to choose from. We can provide a quality-trusted full range of hydraulic pumps, travel motors, final drives, main control valves, swing motors, and engines for KOMATSU, , HITACHI, JOHN DEERE, VOLVO, CASE JCB, KOBELCO, NEW HOLLAND, SUMITOMO, KATO, BOB, DOOSAN, and HYUNDAI.



We provide a customer satisfaction guarantee on all our products. We have invested in providing only the highest-quality replacement parts to our customers. Develop a more broad business space together based on long-term, friendly, mutually beneficial, and win-win business relations.

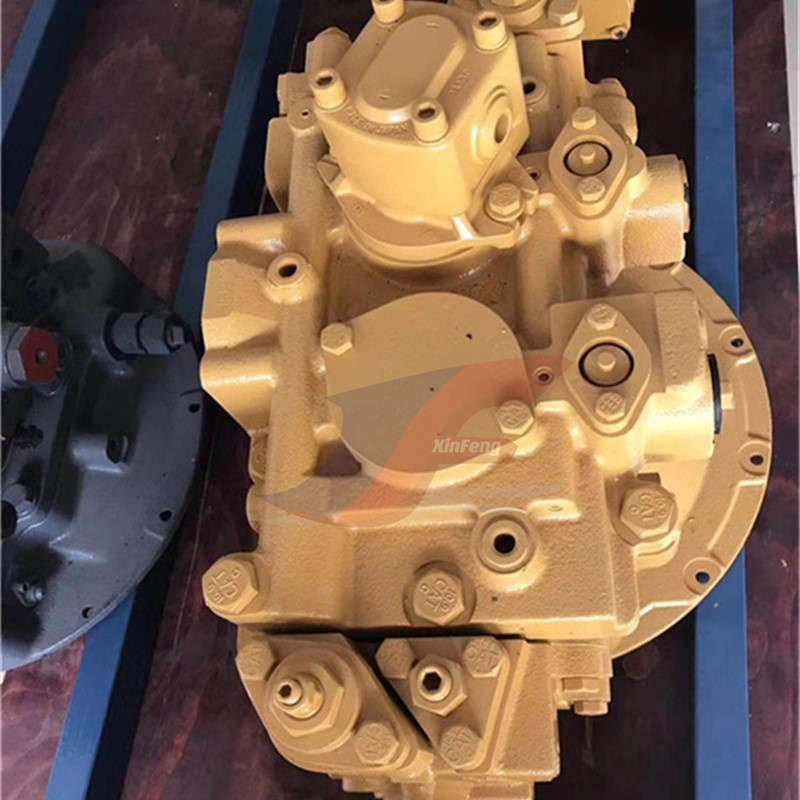

 312C 312CL Excavator Hydraulic Pump 173-0663 1730663 SBS80 2









If you encounter any technical problems with the excavator, you can consult us
