Product Descriptio
| Pos. | Part No | Qty | Parts name |

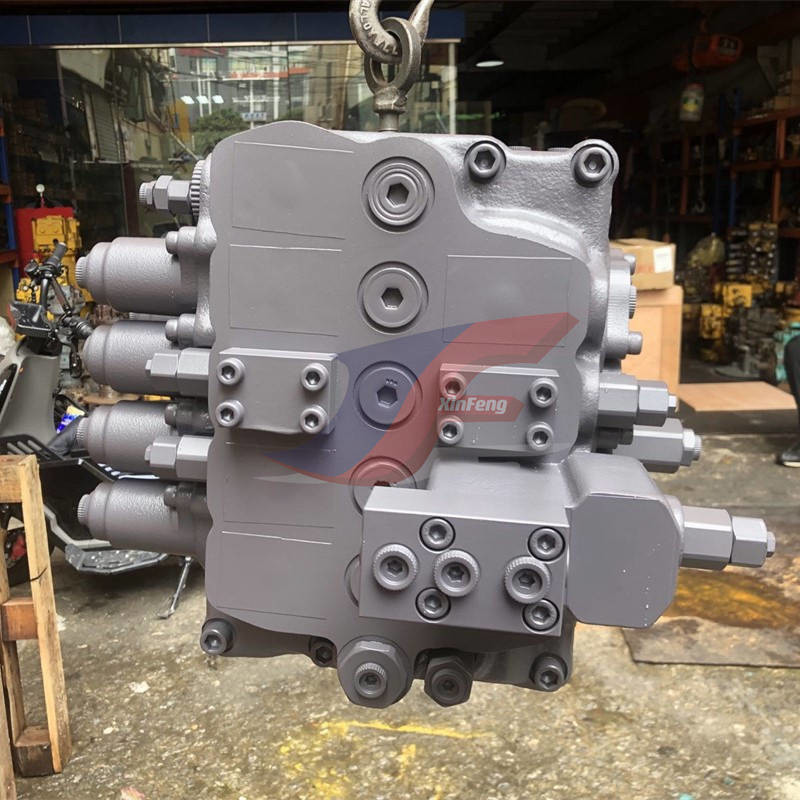

| VOE14511439 | [1] | Control valve | |
| 1 | SA8230-10600 | [1] | Manifold |
| 2 | VOE14513689 | [1] | Cover |
| 3 | SA8230-00660 | [4] | Bolt |
| 4 | VOE983527 | [4] | O-ring |
| 5 | VOE990557 | [2] | O-ring |
| 6 | VOE14501815 | [1] | Stay |
| 7 | SA8230-13150 | [1] | Spring |
| 8 | SA8230-13240 | [1] | Guide |
| 9 | VOE983525 | [7] | O-ring |
| 10 | SA9566-10260 | [7] | Back-up ring |
| 11 | SA8230-02020 | [1] | Ring |
| 12 | SA8230-11780 | [3] | Cap |
| 13 | SA8230-12170 | [1] | Cap |
| 14 | SA8230-11890 | [1] | Cap |
| 15 | SA8230-02880 | [5] | Lock Plug |
| 16 | SA8230-10360 | [5] | Spring |
| 17 | SA8230-11210 | [5] | Check valve |
| 18 | SA8230-12150 | [3] | Cap |
| 19 | SA8230-11200 | [4] | Check valve |
| 20 | SA8230-13180 | [1] | Spring |
| 21 | SA8230-13390 | [1] | Slide |
| 22 | SA8230-01160 | [1] | Cap |
| 23 | VOE983502 | [1] | O-ring |
| 24 | SA8230-12570 | [4] | Relief valve |
| 25 | VOE932042 | [1] | O-ring |
| 26 | SA9566-10160 | [1] | Back-up ring |
| 27 | VOE983507 | [1] | O-ring |
| 28 | VOE14513691 | [1] | Relief valve |
| 29 | VOE932042 | [1] | O-ring |
| 30 | SA9566-10160 | [1] | Back-up ring |
| 31 | VOE983507 | [1] | O-ring |
| 32 | SA8230-12140 | [1] | Cap |
| 33 | SA8230-00280 | [1] | O-ring |
| 34 | VOE983505 | [1] | O-ring |
| 35 | SA8230-13160 | [1] | Spring |
| 36 | SA8230-13360 | [1] | Spool |
| 37 | SA8230-13250 | [1] | Spring guide |
| 38 | SA8230-11940 | [1] | Cap |
| 39 | SA8230-11490 | [1] | Sleeve |
| 40 | SA8230-00290 | [1] | O-ring |
| 41 | SA8230-02040 | [1] | Ring |
| 42 | SA8230-12980 | [1] | Spring |
| 43 | SA8230-10720 | [1] | Slide |
| 44 | VOE14500048 | [1] | Spring |
| 45 | SA8230-13370 | [1] | Slide |
| 46 | VOE14513688 | [1] | Orifice |
| 47 | VOE990559 | [1] | O-ring |
| 48 | VOE14513690 | [1] | Cap |
| 49 | VOE14501846 | [1] | Sealing Kit |
Theory
During the working process of the excavator hydraulic system, the hydraulic oil is sucked into the working pump from the bottom of the tank through the oil filter, and the hydraulic oil with a certain pressure is output from the oil pump and enters a set of parallel distribution valves. The corresponding actions are realized through the handle-→pilot valve-→working valve group. The system limits the total pressure of the entire system through the master safety valve on the main oil line. The safety valves of each group of working oil lines provide overload protection and protection for the corresponding oil lines respectively. Oil replenishing effect.
