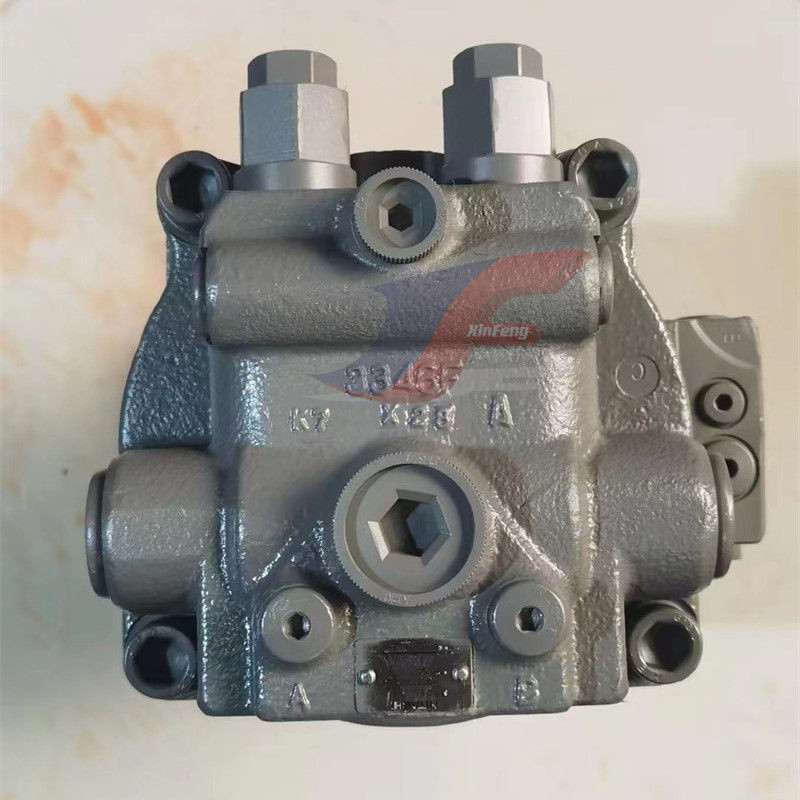

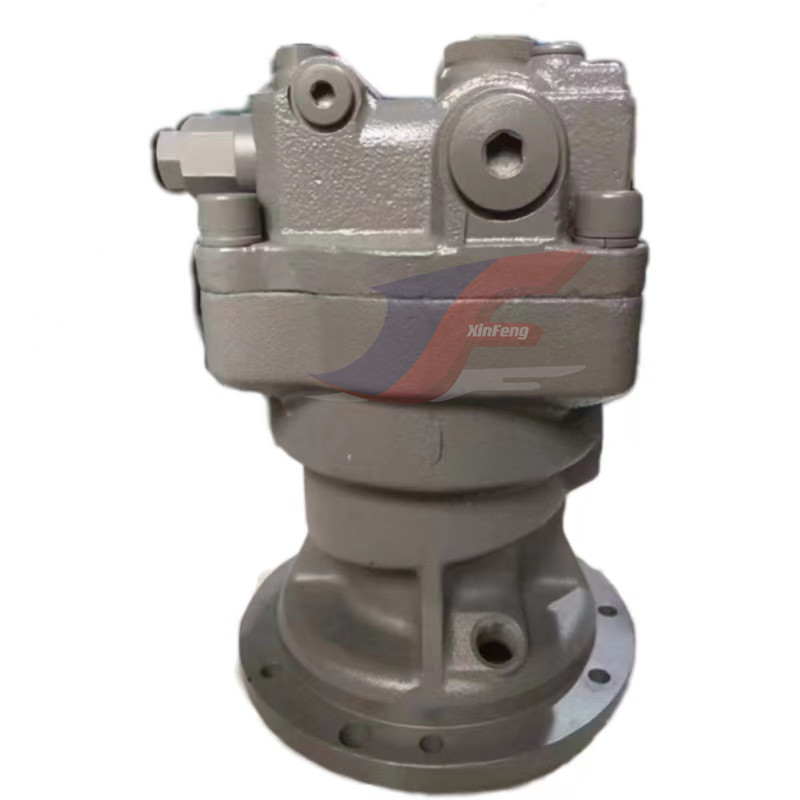

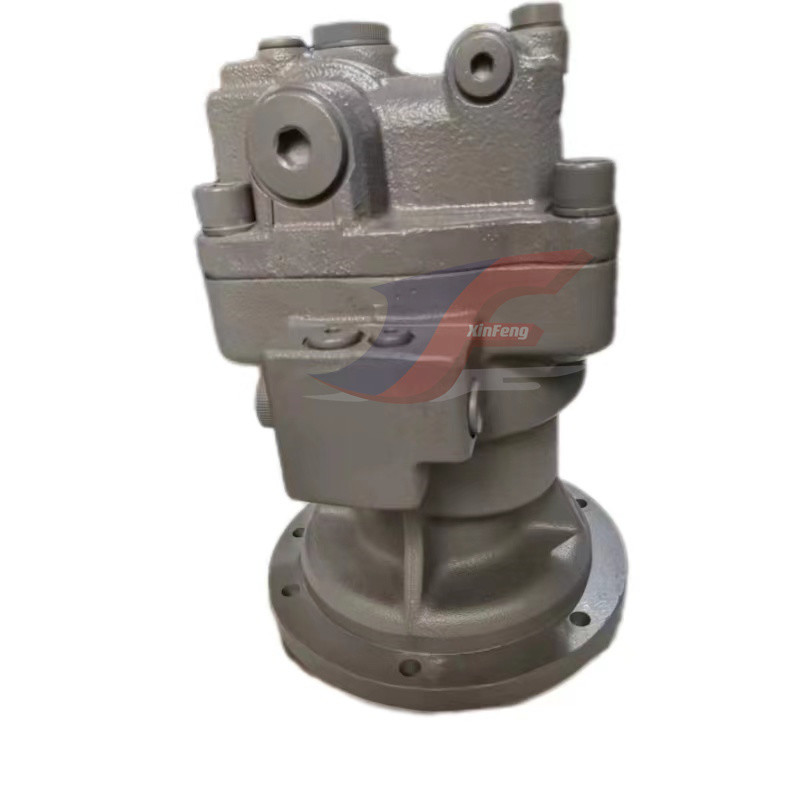

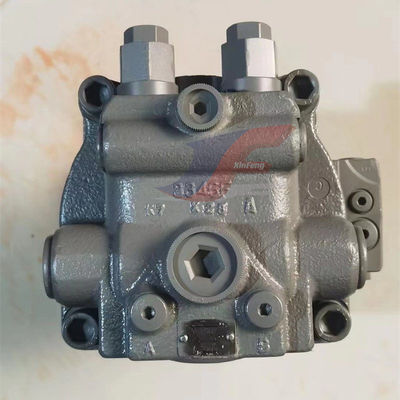

ZX120 ZX130 Excavator Swing Motor Device 9196961 HMS072 9177550

1 Sets
MOQ
Negotiable
Price
ZX120 ZX130 Excavator Swing Motor Device 9196961 HMS072 9177550
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: ZX120 ZX130
Part Number: HMS072 9196961 9177550
Place Of Origin: Guangdong, China
Weight: 60-80KG
Warranty: 6 Months
Delivery Time: 3 Days
Packaging Wooden: Wooden Box With Safty
Video Outgoing-inspection: Provided
MOQ: 1 Piece
Highlight:

ZX120 Excavator Swing Motor

,

ZX130 Excavator Swing Motor

,

9196961

Basic Infomation
Place of Origin: Japan
Brand Name: Hitachi
Model Number: ZX120 ZX130
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 3 days
Payment Terms: L/C,T/T, Western Union, Tradeassurance
Supply Ability: 50-Sets/month
Product Description

ZX120 ZX130 Swing Motor HMS072 9196961 9177550 Swing Device Part for Excavator



Product Descriptio



Pos. Part No Qty Parts name
1 9177550 [1] MOTOR;OIL
2 -9196961 [1] MOTOR;OIL
3 8080152 [1] CASING
    [1] CASING;MOTOR
    [1] PLUNGER;ASSY
4 4320490 [1] SEAL;OIL
5 3085794 [1] SHAFT
6 991342 [1] RING;RETAINING
7 4402669 [1] BRG.;ROL.
8 940144 [1] RING;RETAINING
9 4396102 [1] PLATE;SWASH
10 2043442 [1] ROTOR
11 4413753 [1] SPRING;DISC
12 4413700 [1] BUSHING
13 8071556 [9] PISTON
14 3081727 [1] RETAINER
15 3087818 [4] PLATE;FRICTION
16 3075729 [4] PLATE
17 3084716 [1] PISTON
18 4413765 [1] O-RING
19 4413764 [2] O-RING
20 4434436 [1] SPRING;DISC
21 3089613 [1] PLATE;VALVE
22 9177595 [1] VALVE;BRAKE
23 -9198979 [1] VALVE;BRAKE
24 4413768 [1] BRG.;NEEDLE
25 4413761 [2] PIN;KNOCK
26 A590916 [4] WASHER;SPRING
27 M341650 [4] BOLT;SOCKET
28 M492564 [2] SCREW;DRIVE
29 3088886 [1] NAME-PLATE
30 9134110 [3] PLUG
31 957366 [1] O-RING
32 9134109 [1] PLUG
33 4506408 [1] O-RING
34 4399892 [1] POPPET
35 4398846 [1] SPRING;COMPRES.
36 4452178 [1] WASHER;PLANE
37 4398889 [1] SPRING;COMPRES.



ZX120 ZX130 Excavator Swing Motor Device 9196961 HMS072 9177550 0

Theory

The Swing motor is a key component of the excavator's slewing mechanism. It converts the oil pressure provided by the main pump into mechanical energy and inputs it to the reducer. Its working performance will directly affect the rotation speed, driving torque, and rotation of the entire machine. Parking and parking brakes are key to determining the productivity of the entire machine. After the excavator has been working for a long time, the swing motor often appears weak in rotation and unstable in rotation. At this time, it is necessary to replace the internal parts based on the test results.



Shipping methods

BY EXPRESS, AIR, SEA

ZX120 ZX130 Excavator Swing Motor Device 9196961 HMS072 9177550 1



About Xinfeng Machinery (XF) parts:



Xinfeng Machinery Parts Company was established in 1998. It is a professional team composed of high-quality technical personnel integrating production, maintenance, sales, and service. It is committed to providing customers with high-quality and efficient services. It is headquartered in Guangzhou, China.



We have been engaged in the excavator industry for 25 years. We sell original used parts, rebuilt parts,original new parts, and OEM new parts for many types.We can provide many types for you to choose from. We can provide a quality-trusted full range of hydraulic pumps, travel motors, final drives, main control valves, swing motors, and engines for KOMATSU, , HITACHI, JOHN DEERE, VOLVO, CASE JCB, KOBELCO, NEW HOLLAND, SUMITOMO, KATO, BOB, DOOSAN, and HYUNDAI.



We provide a customer satisfaction guarantee on all our products. We have invested in providing only the highest-quality replacement parts to our customers. Develop a more broad business space together based on long-term, friendly, mutually beneficial, and win-win business relations.





ZX120 ZX130 Excavator Swing Motor Device 9196961 HMS072 9177550 2







If you encounter any technical problems with the excavator, you can consult us.
