Product Descriptio

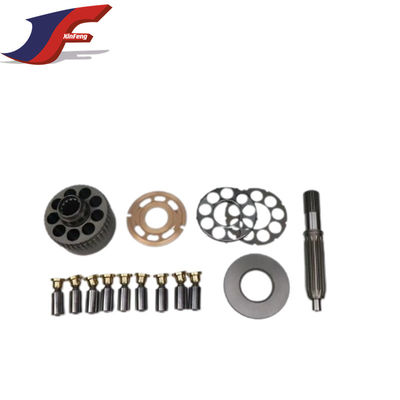

| Pos. | Part No | Qty | Parts name |
| 4398514 | [1] | MOTOR;OIL | |
| 10 | 788801 | [9] | PISTON ASSY |
| 010A. | +++++++ | [1] | PISTON |
| 010B. | +++++++ | [1] | SHOE |
| 20 | 788802 | [1] | CASING ASSY |
| 020A. | +++++++ | [1] | CASING |
| 020B. | +++++++ | [2] | PIN;SPRING |
| 51 | 4451628 | [2] | VALVE;RELIEF |
| 051A. | A811030 | [2] | O-RING |
| 80 | 788803 | [1] | PLUNGER |
| 101 | 788804 | [1] | SHAFT |
| 111 | 788805 | [1] | CYLINDER |
| 114 | 788806 | [1] | SPRING;PLATE |
| 123 | 788807 | [1] | RETAINER |
| 124 | 788808 | [1] | PLATE |
| 131 | 788809 | [1] | PLATE;VALVE |
| 301 | 788810 | [1] | CASING |
| 351 | 409215 | [2] | PLUNGER |
| 355 | 409216 | [2] | SPRING |
| 390 | +++++++ | [1] | NAME-PLATE |
| 391 | 625509 | [2] | PIN |
| 401 | 365318 | [4] | BOLT;SOCKET |
| 443 | 788811 | [1] | BRG.;ROL. |
| 444 | 788812 | [1] | BRG.;ROL. |
| 467 | 629404 | [2] | PLUG |
| 469 | 692708 | [2] | PLUG |
| 472 | 425115 | [1] | O-RING |
| 487 | 957366 | [2] | O-RING |
| 488 | 4506428 | [2] | O-RING |
| 491 | 788813 | [1] | SEAL;OIL |
| 702 | 788814 | [1] | PISTON |
| 706 | 353321 | [1] | O-RING |
| 707 | 425117 | [1] | O-RING |
| 712 | 788815 | [24] | SPRING;BRAKE |
| 742 | 788816 | [3] | PLATE;FRICTION |
| 743 | 788817 | [4] | PLATE |
| 807 | 788818 | [1] | SPRING |
| 808 | 221509 | [1] | BALL;STEEL |
| 809 | 4506407 | [1] | O-RING |
| 813 | 263019 | [2] | PLUG |
| 982 | 628705 | [2] | PLUG |
| 984 | 694825 | [1] | PLUG |
| 985 | 788819 | [1] | PLUG |
Maintenance method
1. Avoid impact pressure damaging components
Impact pressure in the hydraulic pressure should be avoided during operation, as impact pressure will damage components. Each pressure valve and each flow valve must be reasonably adjusted strictly in accordance with the design requirements. After adjustment, the adjusting screws must be tightened securely.
2. Always pay attention to the temperature of the hydraulic station
The working temperature of the hydraulic system oil must not exceed 70°C, and should generally be controlled within the range of 35~60°C. If it exceeds the specified range, the cause should be checked and eliminated.
3. Maintain the quality of hydraulic oil
Select hydraulic oil according to the brand number specified in the instruction manual. The oil must be filtered before refueling. At the same time, the oil quality must be sampled and tested regularly. If the oil quality is found to be unsuitable for use, it must be replaced. Generally, it must be replaced every six months or every 2,000 working hours.
Theory
Piston pumps are generally divided into single plunger pumps, horizontal piston pumps, axial piston pumps and radial piston pumps. The structure mainly consists of eccentric wheel, plunger, spring, cylinder and two one-way valves. A closed volume is formed between the plunger and the cylinder bore. When the eccentric wheel rotates once, the plunger reciprocates once, moving downward to absorb oil and moving upward to discharge oil.
