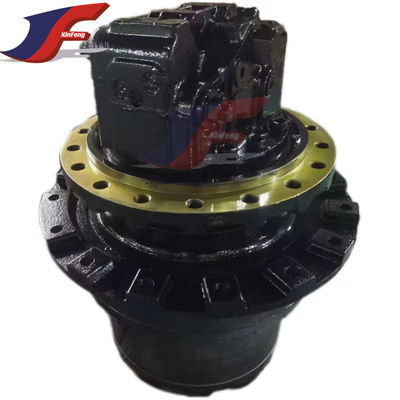

Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |
| 9134825 | [2] | TRAVEL DEVICE | I 9148909 (for assembly of machine) | |
| 9148909 | [2] | TRAVEL DEVICE | (for transportation) | |
| 0 | 9133918 | [1] | MOTOR;OIL | I 9149085 (TRAVEL)<BR><for details: see separate page> |
| 0 | 9149085 | [1] | MOTOR;OIL | (TRAVEL)<BR><for details: see separate page> |
| 2 | 4114753 | [1] | SEAL;GROUP | |
| 3 | 4246793 | [2] | BRG.;ROL. | |
| 4 | 1018736 | [1] | DRUM | |
| 5 | 1018740 | [1] | SPROCKET | |
| 6 | J932055 | [16] | BOLT | |
| 7 | A590920 | [16] | WASHER;SPRING | |
| 8 | 3047448 | [1] | HUB | |
| 9 | 3057125 | [1] | NUT | |
| 10 | 4246783 | [1] | PIN;KNOCK | |
| 12 | 1019147 | [1] | CARRIER | |
| 13 | 3063957 | [3] | GEAR;PLANETARY | |
| 14 | 4317122 | [6] | BRG.;NEEDLE | |
| 15 | 4284521 | [6] | PLATE;THRUST | |
| 16 | 4315838 | [3] | PIN | |
| 17 | 4116309 | [3] | PIN;SPRING | |
| 18 | 3063959 | [1] | GEAR;SUN | |
| 20 | 1020184 | [1] | GEAR;RING | |
| 21 | J931640 | [24] | BOLT | |
| 23 | 2034836 | [1] | CARRIER | |
| 24 | 4401293 | [2] | SPACER | |
| 25 | 3063956 | [3] | GEAR;PLANETARY | |
| 26 | 4317121 | [3] | BRG.;NEEDLE | |
| 27 | 4210851 | [6] | PLATE;THRUST | |
| 28 | 4309995 | [3] | PIN | |
| 29 | 4192020 | [3] | PIN;SPRING | |
| 30 | 3063958 | [1] | GEAR;SUN | |
| 32 | 2034835 | [1] | CARRIER | |
| 33 | 3063955 | [3] | GEAR;PLANETARY | |
| 34 | 4387383 | [3] | BRG.;NEEDLE | |
| 35 | 4192910 | [6] | PLATE;THRUST | |
| 36 | 4210853 | [3] | PIN | |
| 37 | 4173093 | [3] | PIN;SPRING | |
| 38 | 2034834 | [1] | SHAFT;PROP. | |
| 40 | 2034833 | [1] | COVER | |
| 41 | 4285323 | [1] | PIN;STOPPER | |
| 42 | J271230 | [12] | BOLT;SEMS | |
| 42A. | J901230 | [1] | BOLT | |
| 42B. | J222012 | [1] | WASHER | |
| 43 | 4245797 | [3] | PLUG | |
| 47 | M492564 | [2] | SCREW;DRIVE | |
| 48 | +++++++ | [1] | NAME-PLATE |
Maintenance method
1. Whether it is a large excavation or a small excavation, try to walk as short a distance as possible. Long-term walking distance will damage the running wheels of the excavator. When walking, try to make the road as flat as possible, especially if you often walk uphill and have a slow gear. You must use slow gear, and use hooks when necessary. Don't let the walking have too much compound, which will hurt the walking.
2. The planetary gearbox must be filled with gear oil. After the first use, the gear oil should be replaced every three months. After that, the gear oil should be replaced every one year according to different working conditions. After the traveling motor has been running for a period of time, the back cover of the gear box should be removed, the wear of the gear box should be checked regularly, and maintenance should be carried out in a timely manner.
3. During the operation of the traveling motor, the working conditions of the system oil circuit and motor gear oil should be frequently checked. If any abnormal increase in system pressure, leakage of the traveling motor, abnormal temperature rise, vibration noise or abnormal pressure pulsation is found, the machine should be stopped immediately. Find out the cause and repair it in time.
4. When the excavator's traveling motor is weak or there is an abnormality in the system, it should be stopped immediately and check whether the leakage of the hydraulic motor is normal. If there is a large amount of leakage, it means that the hydraulic motor is damaged and needs to be repaired or replaced.
5. It is recommended that after the excavator traveling motor has been working continuously for 1-2 hours, it should be shut down for about 15 minutes.
6. The center position function of the steering control reversing valve that controls the travel hydraulic circuit must be "Y" type or "H" type.
7. If the hydraulic oil is too dirty, it will affect the service life of the excavator's traveling motor.
Advantages
Warehouse Display
Packaging and Delivery
FAQ
1. How to quickly and accurately buy products what lneeded?
A: Provide the original parts number to us to check.
2. How long have you been in the excavator
A: We are engaged in excavator parts since 1998
3. lfI don't know the part number,what shouldI do?
A: Please send us size and pictures of old products.
4. What is the warranty of the products?
A: The warranty is 6/12 Months based on the specific product.
5. How long is your delivery time?
A: The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.
6. Which shipping term you can supply?
7. What is your MOQ?
A: Small order and sample order are acceptable
8. Do you have any After-Sales service?
A: Yes!Our
