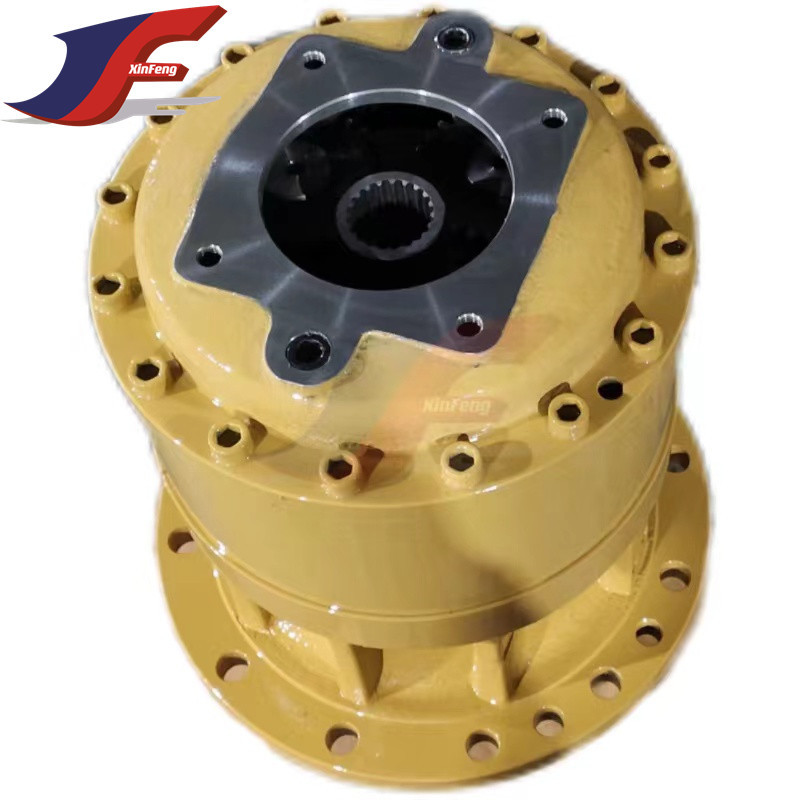

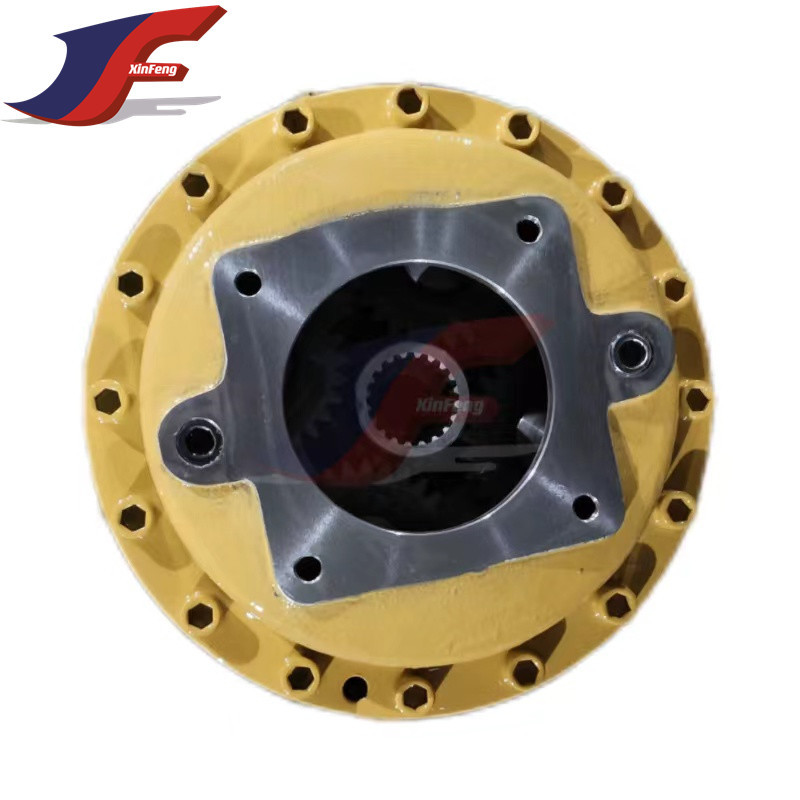

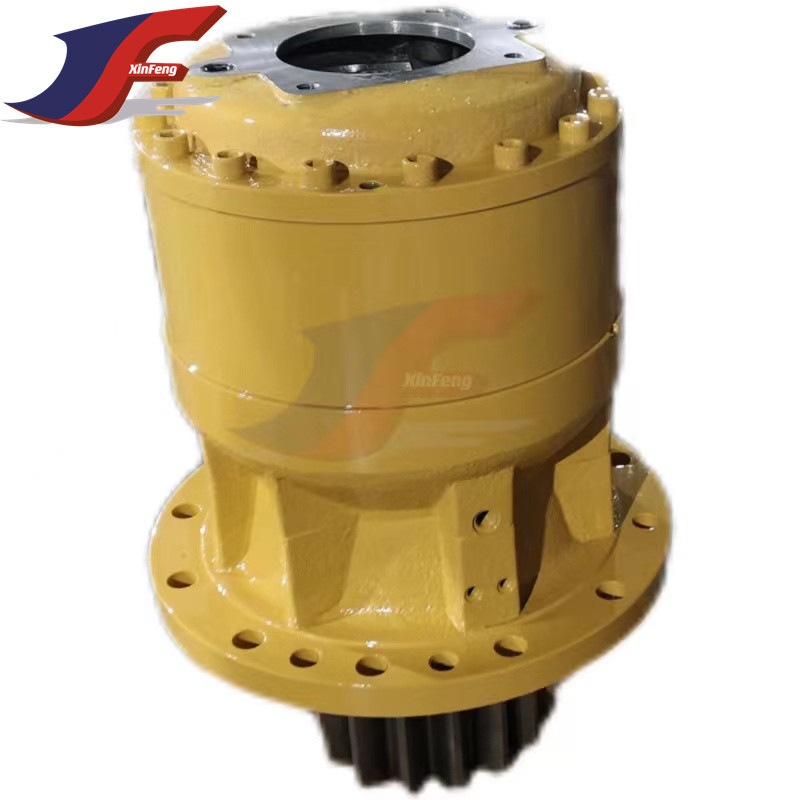

Excavator Swing Redution Gearbox 31QA-10140 R375-7 R385-9 R380-9

1 Sets
MOQ
Negotiable
Price
Excavator Swing Redution Gearbox 31QA-10140 R375-7 R385-9 R380-9
Features Gallery Product Description Request A Quote
Features
Specifications
Video Outgoing-inspection: Provided
Product Name: R375-7 R385-9 R380-9 Swing Gearbox
Part Number: 31QA-10140
Condition: 100%new
Weight: 130KG
Warranty: 6 Months
Packing: Wooden Case
Highlight:

Excavator Swing Redution Gearbox

,

Swing Redution Gearbox R375-7

,

31QA-10140
Basic Infomation
Place of Origin: China
Brand Name: Hyundai
Model Number: R375-7 R385-9 R380-9
Payment & Shipping Terms
Packaging Details: Wooden Case Packing
Delivery Time: 3-5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500-Sets/month
Product Description

Excavator Swing Reducer Gearbox 31QA-10140 For Hyundai R375-7 R385-9 R380-9



Product Descriptio


Pos. Part No Qty Parts name
*-2. 31QA-10140 [1] SWING REDUCTION GEAR
*-2. 31QA-10141 [1] SWING REDUCTION GEAR
*-2. 31QA-10142 [1] SWING REDUCTION GEAR
*-2. 31QA-10141AR [1] SWING REDUCTION GEAR
1 XKAQ-00738 [1] CASING
2 XKAQ-00739 [1] SHAFT-DRIVE
3 XKAQ-00146 [1] BEARING-ROLLER
4 XKAQ-00171 [1] RING-SPACER
5 XKAQ-00149 [1] SEAL-OIL
6 XKAQ-00027 [1] BEARING-ROLLER
7 XKAQ-00263 [1] CARRIER ASSY-NO 2
7 XKAQ-00264 [1] CARRIER ASSY-NO 2
8 XKAQ-00740 [1] CARRIER 2
9 XKAQ-00741 [4] GEAR-PLANETARY 2
10 XKAQ-00742 [4] PIN ASSY 2
11 XKAQ-00254 [1] PIN 2
N12. XKAQ-00255 [1] BUSHING 2
13 XKAQ-00165 [1] PIN-SPRING
14 XKAQ-00156 [4] WASHER-THRUST
15 XKAQ-00050 [4] PIN-SPRING
16 XKAQ-00412 [1] CARRIER ASSY 1
17 XKAQ-00743 [1] CARRIER 1
18 XKAQ-00414 [4] GEAR-PLANETARY 1
19 XKAQ-00744 [4] PIN 1
20 XKAQ-00030 [4] CAGE-NEEDLE
21 XKAQ-00417 [4] PLATE 1-SIDE
22 XKAQ-00416 [4] PLATE 2-SIDE
23 XKAQ-00041 [4] RING-STOP
24 XKAQ-00048 [1] PIN-SPRING
25 XKAQ-00260 [1] RING-THRUST
26 XKAQ-00745 [1] GEAR-SUN 2
27 XKAQ-00746 [1] GEAR-SUN 1
28 XKAQ-00420 [1] GEAR-RING
29 XKAQ-00072 [2] PIN-KNOCK
30 XKAQ-00747 [1] PLATE-COVER
31 XKAQ-00148 [8] BOLT-HEX
32 XKAQ-00748 [1] SPACER
33 XKAQ-00749 [1] GEAR-PINION
34 XKAQ-00299 [1] PLATE-LOCK
35 XKAQ-00042 [4] BOLT-HEX
36 XKAQ-00292 [2] WASHER-LOCK
37 XKAQ-00274 [2] PLUG
38 XKAQ-00049 [1] PLUG
39 XKAQ-00259 [16] BOLT-SOCKET
40 XKAQ-00750 [1] COVER
40 XKAQ-00982 [1] COVER
41 XKAQ-00751 [1] O-RING
42 XKAQ-00170 [4] BOLT-SOCKET
43 XKAQ-00066 [1] PLUG
45 XKAQ-00143 [1] POST-AIR BREATHER
45-1. XKAQ-00143 [1] POST-AIR BREATHER
45-2. XKAQ-00324 [1] CAP-BREATHER
46 XKAQ-00167 [1] PIPE-GAUGE
47 XKAQ-00166 [1] BAR-GAUGE


Excavator Swing Redution Gearbox 31QA-10140 R375-7 R385-9 R380-9 0

Excavator Swing Redution Gearbox 31QA-10140 R375-7 R385-9 R380-9 1

Excavator Swing Redution Gearbox 31QA-10140 R375-7 R385-9 R380-9 2
About Xinfeng Machinery (XF) parts:

Excavator Swing Redution Gearbox 31QA-10140 R375-7 R385-9 R380-9 3


Excavator Swing Redution Gearbox 31QA-10140 R375-7 R385-9 R380-9 4

Advantages
Excavator Swing Redution Gearbox 31QA-10140 R375-7 R385-9 R380-9 5

Warehouse Display
Excavator Swing Redution Gearbox 31QA-10140 R375-7 R385-9 R380-9 6
Excavator Swing Redution Gearbox 31QA-10140 R375-7 R385-9 R380-9 7
Packaging and Delivery

Excavator Swing Redution Gearbox 31QA-10140 R375-7 R385-9 R380-9 8
Excavator Swing Redution Gearbox 31QA-10140 R375-7 R385-9 R380-9 9


FAQ
1.How to quickly and accurately buy products what lneeded?
A:Provide the original parts number to us to check.

2.How long have you been in the excavator
A:We are engaged in excavator parts since 1998


3.lfI don't know the part number,what shouldI do?
A:Please send us size and pictures of old products.


4.How long is your delivery time?
A:The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.

5.Which shipping term you can supply?

A:By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)


6.What is your MOQ?
A:Small order and sample order are acceptable


7.Do you have any After-Sales service?
A:Yes!Our
