Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |

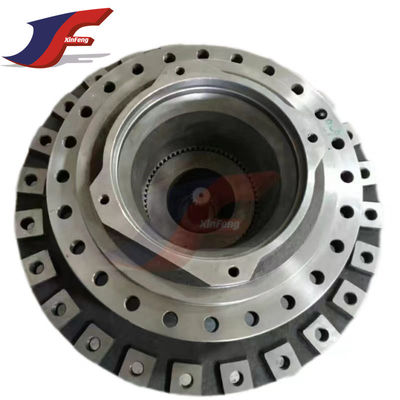

| 00-66. | 9251681 | [1] | TRAVEL DEVICE | |
| 0 | 4636857 | [1] | MOTOR;OIL | |
| 2 | 4219329 | [1] | BRG.;ROL. | |
| 3 | 4219328 | [1] | BRG.;ROL. | |
| 4 | 1030160 | [1] | HOUSING | |
| 5 | 1012131 | [1] | DRUM | |
| 6 | 2025832 | [1] | SUPPORT | |
| 9 | 4245703 | [1] | SEAL;GROUP | |
| 11 | J932785 | [24] | BOLT | |
| 12 | A590927 | [24] | WASHER;SPRING | |
| 13 | 425175 | [2] | CORK | |
| 14 | 4430291 | [1] | SPROCKET | |
| 15 | 3069875 | [1] | NUT | |
| 16 | 3041462 | [1] | PLATE;LOCK | |
| 17 | J901225 | [2] | BOLT | |
| 18 | 4609016 | [12] | BOLT;SEMS | |
| 19 | 1028874 | [1] | CARRIER | |
| 20 | 3090709 | [4] | GEAR;PLANETARY | |
| 21 | 4464369 | [8] | BRG.;NEEDLE | |
| 22 | 4219640 | [8] | PLATE;THRUST | |
| 23 | 4447037 | [4] | PIN | |
| 24 | 4222029 | [4] | PIN;SPRING | |
| 25 | 3090710 | [1] | GEAR;SUN | |
| 27 | 1028886 | [1] | GEAR;RING | |
| 28 | 4223568 | [1] | O-RING | |
| 29 | M342260 | [30] | BOLT;SOCKET | |
| 31 | 1028881 | [1] | CARRIER | |
| 33 | 3090930 | [4] | GEAR;PLANETARY | |
| 34 | 4455088 | [4] | BRG.;NEEDLE | Y 4371402 |
| 34 | 4371402 | [4] | BRG.;NEEDLE | |
| 35 | 4269470 | [8] | PLATE;THRUST | |
| 36 | 4447032 | [4] | PIN | |
| 37 | 4203180 | [4] | PIN;SPRING | |
| 38 | 3090711 | [1] | GEAR;SUN | |
| 39 | 4657080 | [3] | SPACER | |
| 40 | 1028898 | [1] | CARRIER | |
| 42 | 3089538 | [3] | GEAR;PLANETARY | |
| 43 | 4445529 | [3] | BRG.;NEEDLE | |
| 44 | 4210851 | [6] | PLATE;THRUST | |
| 45 | 4309995 | [3] | PIN | |
| 46 | 4246358 | [3] | PIN;SPRING | |
| 47 | 2045895 | [1] | SHAFT;PROP. | |
| 49 | 1028899 | [1] | COVER | |
| 50 | 4284195 | [1] | BRG.;BALL | |
| 51 | 4277474 | [1] | PIN;STOPPER | |
| 54 | 4257967 | [18] | BOLT;SHOE | |
| 55 | A590914 | [18] | WASHER;SPRING | |
| 56 | 4462824 | [3] | PLUG | |
| 57 | 429597 | [2] | CORK | |
| 61 | 4271596 | [1] | O-RING | |
| 62 | J911860 | [4] | BOLT | |
| 63 | A590918 | [4] | WASHER;SPRING | |
| 65 | +++++++ | [1] | NAME-PLATE | |
| 66 | M492564 | [2] | SCREW;DRIVE | |
| 101 | 4279079 | [2] | PLATE | |
| 102 | 4279078 | [2] | PACKING | |
| 103 | J901216 | [4] | BOLT | |
| 104 | 3096382 | [1] | COVER | |
| 105 | J931835 | [4] | BOLT | |
| 201 | 9219275 | [1] | T.MISSION | (WITHOUT MOTOR) (ITEM 02-61,104-105) |
| 202 | YB60000075 | [1] | TRAVEL DEVICE | (WITHOUT SPROCKET) (ITEM 00-09,15-66,101-103) |
| 203 | YB60000249 | [1] | TRAVEL DEVICE | (WITHOUT MOTOR,SPROCKET) (ITEM 02-09,15-61,104-105) |
