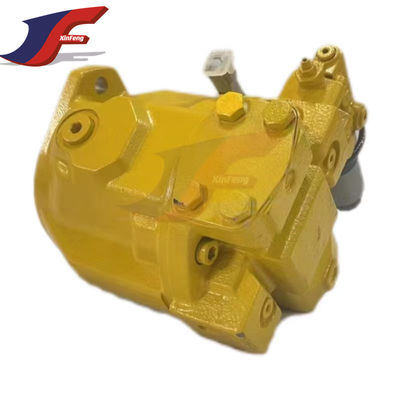

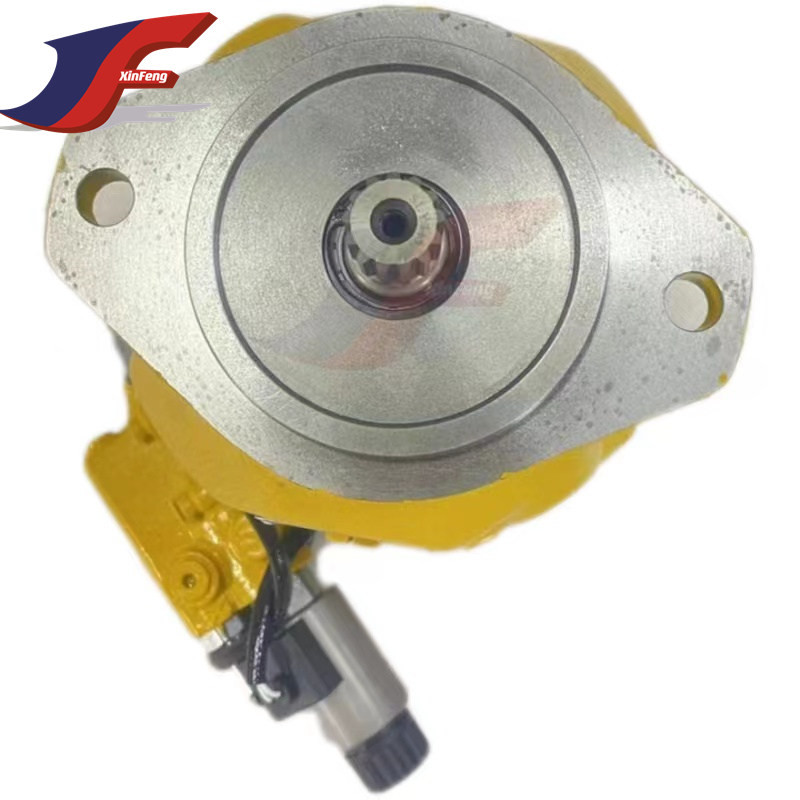

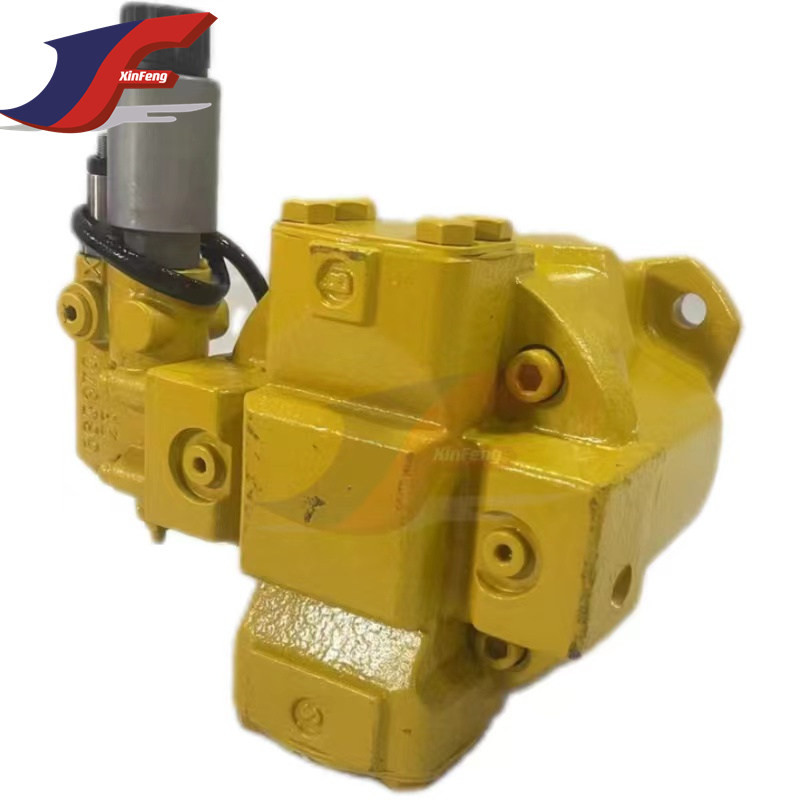

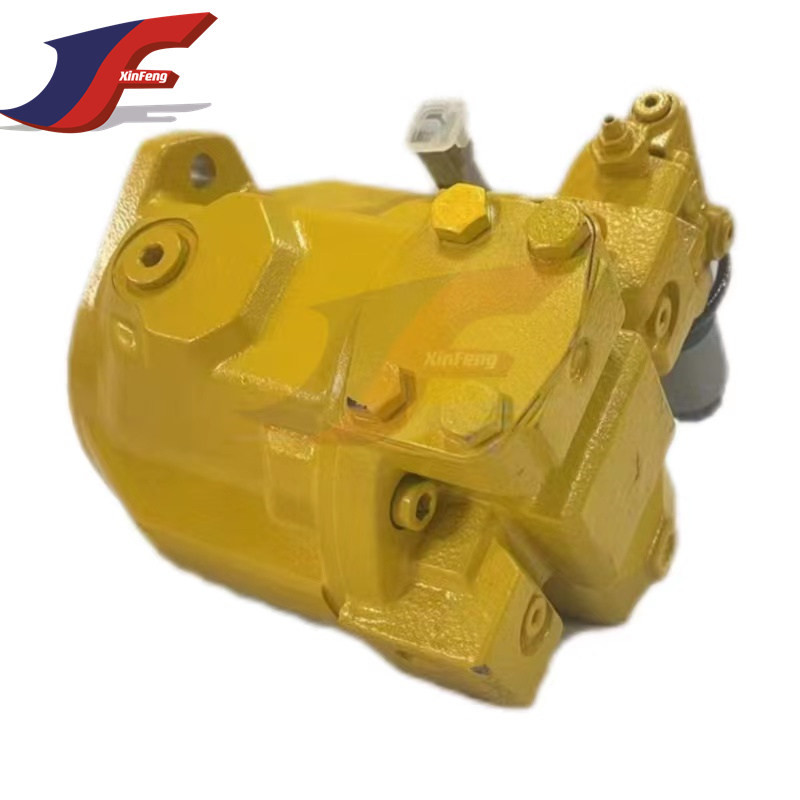

Hydraulic Fan Pump 259-0815 Group Piston for 330D 336D Excavator C9 Engine
Product Description
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
191-7581 |
[1] |
SHAFT |
|
| 2 |
8T-9597 |
[1] |
RING-RETAINING |
|
| 3 |
194-9473 |
[1] |
RING |
|
| 4 |
155-9125 |
[1] |
BEARING AS-ROLLER |
|
| 5 |
213-9250 |
[4] |
SEAL-O-RING |
|
| 6 |
9X-6032 M |
[4] |
BOLT-SOCKET HEAD (M10X1.5X30-MM) |
|
| 7 |
191-7583 |
[1] |
BEARING-TAPERED |
|
| 8 |
213-9248 |
[1] |
SEAL-O-RING |
|
| 9 |
191-7582 |
[1] |
SHIM (2.5-MM THK) |
|
| 10 |
266-7833 Y |
[1] |
ROTATING GP-PUMP |
|
| 11 |
9S-8005 |
[1] |
PLUG (3/4-16-THD) |
|
| 12 |
3K-0360 |
[1] |
SEAL-O-RING |
|
| 13 |
155-9134 |
[2] |
PLATE |
|
| 14 |
155-9127 |
[1] |
SEAL |
|
| 15 |
155-9131 |
[1] |
SWASHPLATE |
|
| 16 |
209-5982 Y |
[1] |
ACTUATOR GP |
|
| 17 |
266-7835 |
[1] |
COVER |
|
| 18 |
120-4394 |
[1] |
PLUG-BREAK OFF |
|
| 19 |
137-3780 |
[2] |
PLUG |
|
| 20 |
259-0908 |
[2] |
SEAL |
|
| 21 |
204-2799 |
[1] |
DOWEL |
|
| 22 |
266-7834 |
[1] |
HOUSING |
|
| 23 |
9X-7680 |
[3] |
SEAL-O-RING |
|
| 24 |
8T-8442 M |
[4] |
BOLT-SOCKET HEAD (M6X1X30-MM) |
|
| 25 |
259-0907 Y |
[1] |
VALVE GP-PUMP CONTROL (HYDRAULIC FAN) |
|
| |
M |
|
METRIC PART |
|
| |
Y |
|
SEPARATE ILLUSTRATION |
|
| |
|
|
|
|
Advantages
Warehouse Display
We can supply huge stock for excavator spare parts ( various brands ) :
Hydraulic parts: hydraulic pump assy , hydraulic pump parts(block assy, plate valve, guide retainer, retainer shoe, piston sub assy, cradle assy--cradle, cam rocker), swing motor, swing machinery, swing circle, main control valve, travel motor, boom cylinder, arm cylinder, bucket cylinder ,hydrualic valve and so on.
Engine parts : piston liner kits, main &con rod bearings, valves, cylinder gasket kits, plunger/delivery valve/nozzle,cylinder
block, cylinder head, crankshaft, camshaft, starting motor, oil /water / feed pump, fan blade, turbocharger,thermostat and so on.
electric parts:Computer board, monitor, engine line speed, hydraulic pump line speed, starter motor, pressure switch.
