Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |

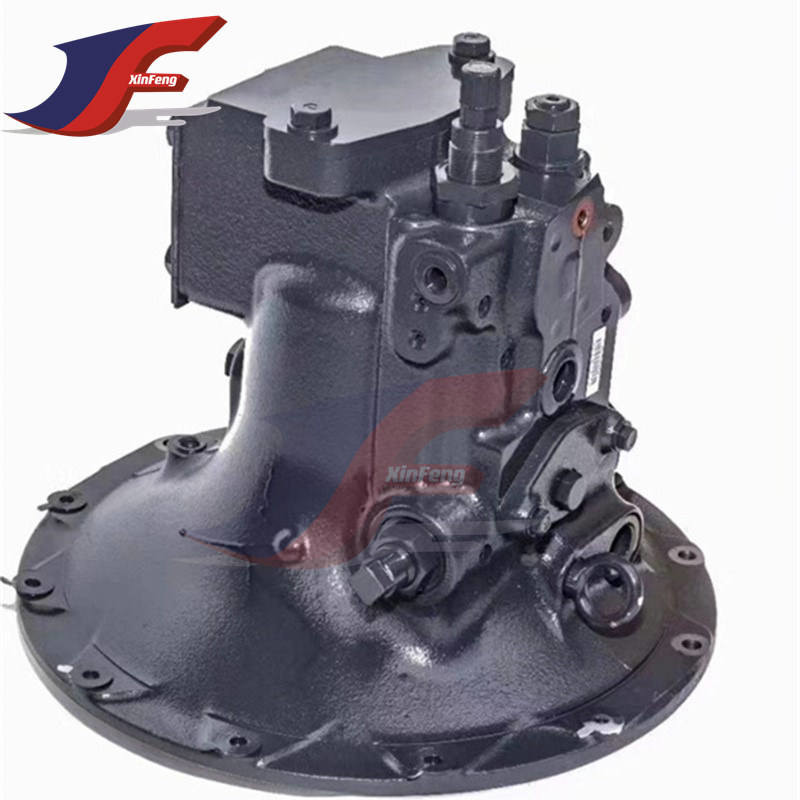

| 708-1W-00042 | [1] | PUMP ASSY Komatsu China | ||
| ["SN: 45001-52373"] analogs:["7081W01042"] |$1. | ||||
| 708-1W-01042 | [1] | PUMP SUB ASSY Komatsu China | ||
| ["SN: 45001-52373"] analogs:["7081W00042"] |$3. | ||||
| 1 | 708-1W-22111 | [1] | SHAFT Komatsu China | |
| ["SN: 45001-52373"] | ||||
| 2 | 708-1W-22140 | [1] | BEARING Komatsu | 0.431 kg. |
| ["SN: 45001-52373"] | ||||
| 3 | 708-23-05011 | [1] | WASHER KIT Komatsu | 0.05 kg. |
| ["SN: 45001-52373"] | ||||
| 4 | 708-23-12840 | [1] | RING,SNAP Komatsu China | |
| ["SN: 45001-52373"] analogs:["890001295"] | ||||
| 5 | 04065-07225 | [1] | RING,SNAP Komatsu | 0.02 kg. |
| ["SN: 45001-52373"] | ||||
| 6 | 708-1D-12130 | [1] | BEARING Komatsu | 0.25 kg. |
| ["SN: 45001-52373"] analogs:["7081W22320"] | ||||
| 7 | 708-8D-12220 | [1] | SEAL,OIL Komatsu | 0.053 kg. |
| ["SN: 45001-52373"] analogs:["7088D12221"] | ||||
| 8 | 708-1W-22160 | [1] | SPACER Komatsu China | |
| ["SN: 45001-52373"] analogs:["890001298"] | ||||
| 9 | 04065-05520 | [1] | RING,SNAP Komatsu | 0.01 kg. |
| ["SN: 45001-52373"] | ||||
| 708-1W-04081 | [1] | CYLINDER BLOCK ASSY Komatsu China | ||
| ["SN: 45001-52373"] |$17. | ||||
| 10 | 708-1W-23110 | [1] | BLOCK,CYLINDER Komatsu | 3.721 kg. |
| ["SN: 45001-52373"] | ||||
| 11 | 708-1W-23211 | [1] | PLATE,VALVE Komatsu China | |
| ["SN: 45001-52373"] | ||||
| 12 | 720-68-19610 | [1] | PIN Komatsu | 0.002 kg. |
| ["SN: 45001-52373"] | ||||
| 13 | 708-1W-23351 | [1] | GUIDE,RETAINER Komatsu | 1.2 kg. |
| ["SN: 45001-52373"] | ||||
| 14 | 708-1W-23150 | [1] | SPRING Komatsu | 0.12 kg. |
| ["SN: 45001-52373"] | ||||
| 15 | 708-1W-23130 | [1] | SEAT Komatsu | 0.016 kg. |
| ["SN: 45001-52373"] | ||||
| 16 | 708-1W-23140 | [1] | SEAT Komatsu | 0.05 kg. |
| ["SN: 45001-52373"] | ||||
| 17 | 04065-04218 | [1] | RING,SNAP Komatsu | 0.005 kg. |
| ["SN: 45001-52373"] | ||||
| 18 | 708-7L-13360 | [3] | PIN Komatsu | 0.003 kg. |
| ["SN: 45001-52373"] | ||||
| 19 | 708-1W-23340 | [1] | RETAINER,SHOE Komatsu China | |
| ["SN: 45001-52373"] | ||||
| 20 | 708-1W-23311 | [9] | PISTON SUB ASSY Komatsu China | |
| ["SN: 45001-52373"] | ||||
| 708-1W-04061 | [1] | CRADLE ASSY Komatsu China | ||
| ["SN: 45001-52373"] |$29. | ||||
| 708-1W-04050 | [1] | CRADLE SUB ASSY Komatsu China | ||
| ["SN: 45001-52373"] |$30. | ||||
| 23 | 708-1W-23412 | [1] | CAM,ROCKER Komatsu | 1.63 kg. |
| ["SN: 45001-52373"] | ||||
| 24 | 04020-01024 | [1] | PIN,DOWEL Komatsu | 0.015 kg. |
| ["SN: 45001-52373"] analogs:["PZF890001197"] | ||||
| 25 | 01010-51035 | [8] | BOLT Komatsu | 0.033 kg. |
| ["SN: 45001-52373"] analogs:["801015556", "0101081035", "01010D1035"] | ||||
| 26 | 01643-31032 | [8] | WASHER Komatsu | 0.054 kg. |
| ["SN: 45001-52373"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 27 | 07000-B2011 | [1] | O-RING Komatsu | 0.001 kg. |
| ["SN: 45001-52373"] | ||||
| 28 | 07000-02145 | [1] | O-RING Komatsu China | 0.03 kg. |
Maintenance
1. Replace hydraulic oil regularly: Hydraulic oil plays an important role in lubrication and sealing in the excavator hydraulic system. Regularly changing the hydraulic oil can ensure the normal operation of the hydraulic pump. Follow the manufacturer's recommendations, use a suitable hydraulic oil, and follow the appropriate change intervals.
2. Check the hydraulic oil filter: The function of the hydraulic oil filter is to filter impurities and contaminants in the hydraulic oil to prevent them from entering the hydraulic pump and other hydraulic components. Check and replace the hydraulic oil filter regularly to ensure it is working properly.
3. Check the seals: The pump seals, such as O-rings and sealing rings, are crucial to the normal operation of the hydraulic pump. Check these seals regularly to make sure they are intact. If any wear or damage is found, replace it in time.
4. Check for leaks regularly: Leakage is one of the common problems in hydraulic systems. Regularly check the hydraulic pump and various connection points of the hydraulic system to ensure that there are no leaks. If leaks are found, they should be repaired promptly.
5. Keep the hydraulic pump clean: Keeping the hydraulic pump and its surrounding environment clean can prevent dust, impurities, etc. from entering the inside of the pump, thereby reducing pump wear and failure.
6. Check pressure and temperature regularly: It is very important to monitor the working pressure and temperature of the hydraulic pump. Ensure that the hydraulic pump operates within its normal operating range and avoid exceeding rated pressure and temperature.
7. Regular maintenance and upkeep: Carry out regular maintenance and upkeep in accordance with the maintenance manual and recommendations provided by the excavator manufacturer. This includes lubricating hydraulic pump lubrication points, inspecting fasteners, adjusting loose connections, etc.
