Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |

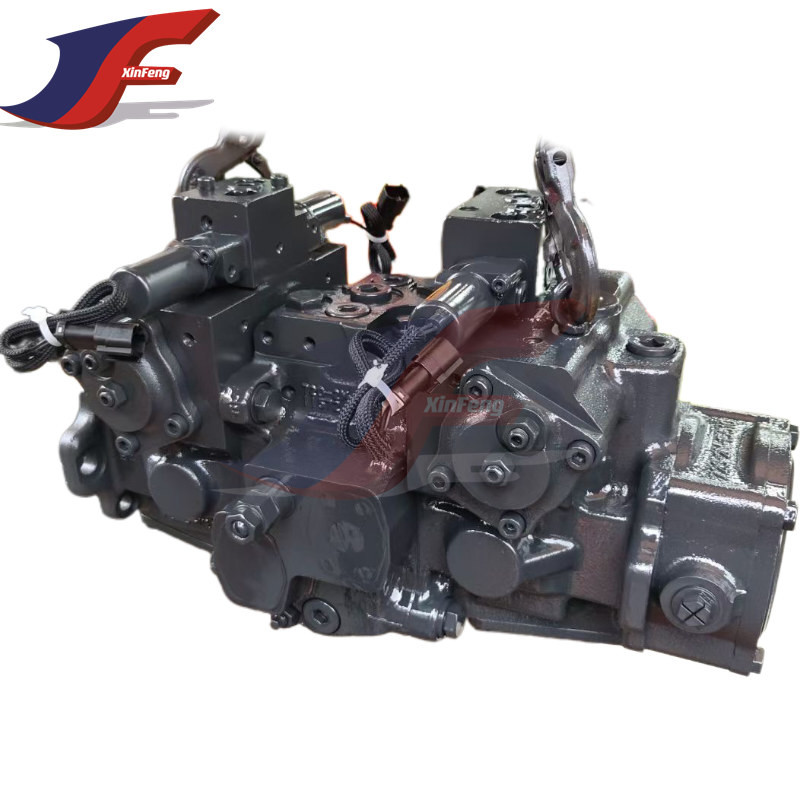

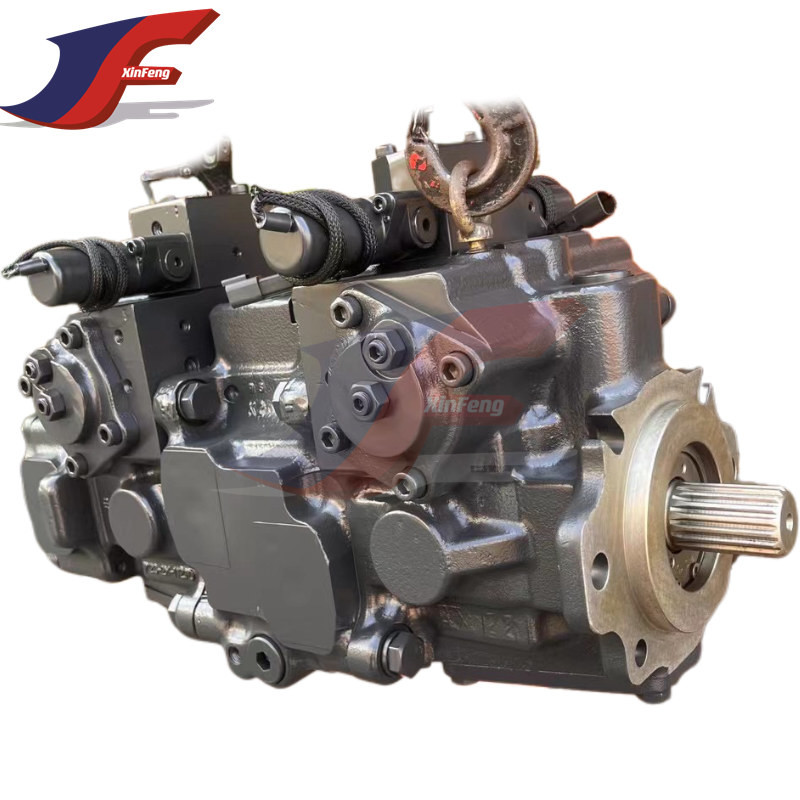

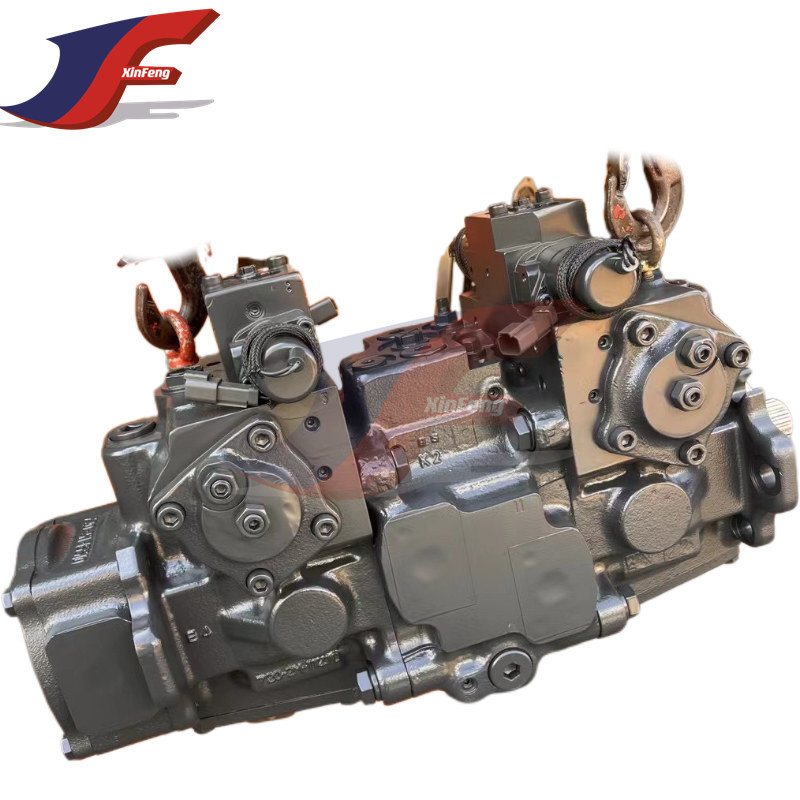

| 720-2M-00081 | [1] | Pump Assembly Komatsu | 136.5 kg. | |
| ["SN: 60001-UP"] |$0. | ||||
| 720-2M-01081 | [1] | Pump Subassembly Komatsu China | ||
| ["SN: 60001-UP"] |$1. | ||||
| 720-2M-04250 | [1] | Cap Assembly, End Komatsu China | ||
| ["SN: 60001-UP", "SCC: C2"] |$2. | ||||
| 3 | 708-2M-12250 | [2] | Bearing Komatsu China | |
| ["SN: 60001-UP", "SCC: C2"] | ||||
| 4 | 720-2M-11520 | [1] | Collar Komatsu China | |
| ["SN: 60001-UP", "SCC: C2"] | ||||
| 5 | 04020-01228 | [2] | Pin, Dowel Komatsu | 0.026 kg. |
| ["SN: 60001-UP", "SCC: C2"] analogs:["21T3016190"] | ||||
| 6 | 07000-A5150 | [2] | O-ring Komatsu | 0.79 kg. |
| ["SN: 60001-UP", "SCC: C2"] | ||||
| 7 | 01010-81650 | [8] | Bolt Komatsu China | 0.113 kg. |
| ["SN: 60001-UP", "SCC: C2"] analogs:["0101061650", "0101051650", "0101031650"] | ||||
| 8 | 01643-51645 | [8] | Washer Komatsu | 0.021 kg. |
| ["SN: 60001-UP", "SCC: C2"] | ||||
| 9 | 720-2M-15270 | [1] | Plug Komatsu China | |
| ["SN: 60001-UP"] | ||||
| 10 | 07002-62434 | [1] | O-ring Komatsu | 0.001 kg. |
| ["SN: 60001-UP"] analogs:["7081W28910"] | ||||
| 11 | 720-2M-11531 | [2] | Plug Komatsu China | |
| ["SN: 60001-UP"] | ||||
| 12 | 07002-61223 | [2] | O-ring Komatsu | 0.001 kg. |
| ["SN: 60001-UP"] analogs:["7082L23940"] | ||||
| 13 | 07000-B2012 | [2] | O-ring Komatsu China | 0.001 kg. |
| ["SN: 60001-UP"] | ||||
| 14 | 708-2M-12110 | [1] | Shaft, Front Komatsu China | |
| ["SN: 60001-UP", "SCC: C2"] | ||||
| 15 | 708-2M-12150 | [1] | Bearing Komatsu | 0.6 kg. |
| ["SN: 60001-UP", "SCC: C2"] | ||||
| 16 | 708-2M-05110 | [1] | Washer Kit Komatsu | 0.24 kg. |
| ["SN: 60001-UP", "SCC: C2"] | ||||
| 17 | 708-2M-12160 | [1] | Ring, Snap Komatsu China | |
| ["SN: 60001-UP", "SCC: C2"] | ||||
| 18 | 708-2M-12310 | [1] | Seal, Oil Komatsu | 0.07 kg. |
| ["SN: 60001-UP"] | ||||
| 19 | 708-2M-12320 | [1] | Cover Komatsu China | |
| ["SN: 60001-UP"] | ||||
| 20 | 07000-A2075 | [1] | O-ring Komatsu | 0.002 kg. |
| ["SN: 60001-UP"] | ||||
| 21 | 04065-08225 | [1] | Ring, Snap Komatsu | 0.024 kg. |
| ["SN: 60001-UP"] |
|
Model
|
Hydraulic Pump
|
|
PC27MR-2
|
708-1S-00262/708-1S-00261/708-1S-00271/708-1S-00270
|
|
PC35MR-3
|
708-3S-00720
|
|
PC130-7
|
708-1L-00650
|
|
PC200-7
|
708-2L-00300
|
|
PC220-7
|
708-2L-00112
|
|
PC200-8
|
708-2L-00490/708-2L-00501/708-2L-00500
|
|
PC220-8
|
708-2L-00790/708-2L-00600
|
|
PC300-7/PC350-7/PC360-7
|
708-2G-00024/708-2G-00023/708-2G-00022
|
|
PC300-8/PC350-8
|
708-2G-00700
|
|
PC400-7
|
708-2H-00460/708-2H-00032/708-2H-00031/708-2H-00030
|
|
PC450-7
|
708-2H-00450/708-2H-00027/708-2H-00026/708-2H-00022
|
|
PC400-8/PC450-8
|
708-2H-00027/708-2H-00026
|
Maintenance
1. Regularly replace hydraulic oil: Hydraulic oil is an important part of the hydraulic system. It is very important to regularly replace and maintain the cleanness and proper viscosity of the hydraulic oil. Regularly check and replace hydraulic oil according to the excavator manufacturer's recommendations, ensuring you are using the correct specifiion and brand.
2. Regularly check the quality of the oil: Regularly check the quality of the hydraulic oil, including checking for moisture, impurities and contaminants. Use appropriate oil filters and oil analyzers to ensure the quality of your hydraulic oil is up to standard.
3. Check the seals of the hydraulic pump: The seals of the hydraulic pump (such as O-rings, sealing rings, etc.) may be worn or damaged during operation, causing hydraulic leakage. Regularly inspect and replace hydraulic pump seals to ensure good sealing performance.
About Xinfeng Machinery (XF) parts:
Advantages
Warehouse Display
Packaging and Delivery
FAQ
1. How to quickly and accurately buy products what lneeded?
A: Provide the original parts number to us to check.
2. How long have you been in the excavator
A: We are engaged in excavator parts since 1998
3. lfI don't know the part number,what shouldI do?
A: Please send us size and pictures of old products.
4. What is the warranty of the products?
A: The warranty is 6/12 Months based on the specific product.
5. How long is your delivery time?
A: The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.
6. Which shipping term you can supply?
7. What is your MOQ?
A: Small order and sample order are acceptable
8. Do you have any After-Sales service?
A: Yes!Our
