Product Name: WA500-6 Hydraulic Pump

Part Number: 708-1W-01031 708-1H-00030

Video Outgoing-inspection: Provided

Warranty: 6 Months

Packing: Wooden Box,standar Packing With Safety

Product Class: Komatsu Bulldozer Hydraulic Pump

Quality: High Quaity

Place Of Origin: Guangzhou China

Delivery Time: 2-3 Working Days

Weight: 150KG

MOQ: 1 Piece

Highlight:

Komatsu WA500-6 hydraulic pump

708-1H-00030 hydraulic pump

708-1W-01031 hydraulic pump

Basic Infomation

Place of Origin: China

Brand Name: Komatsu

Model Number: WA500-6

Payment & Shipping Terms

Packaging Details: Wooden Case Packing

Delivery Time: 3-5 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500-Sets/month

Gallery

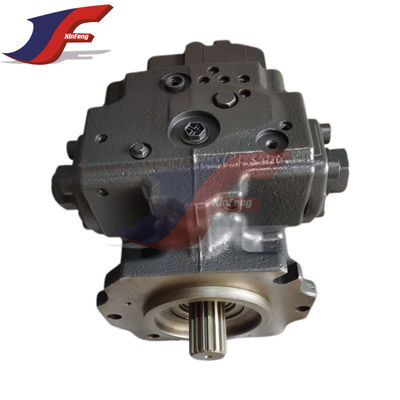

708-1W-01031 708-1H-00030 Hydraulic Pump For Komatsu WA500-6 Bulldozer

Product Description

708-1W-01031 708-1H-00030 hydraulic pump for Komatsu WA500-6 bulldozer

Name: 708-1W-01031 708-1H-00030 Hydraulic Pump For Komatsu WA500-6 Bulldozer
Brand: Guangzhou XinFeng Engineering Machinery Co., Ltd.
SKU: WA500-6
Availability: InStock

708-1W-01031 708-1H-00030 Hydraulic Pump For Komatsu WA500-6 Bulldozer 0

Product Descriptio

708-1W-01031 708-1H-00030 Hydraulic Pump For Komatsu WA500-6 Bulldozer 1

Pos.	Part No	Qty	Parts name	Comments
	708-1H-00030	[1]	Pump Assembly Komatsu	134 kg.
			["SN: 55479-UP"] \|$0.
	708-1H-01031	[1]	Pump Subassembly Komatsu	134 kg.
			["SN: 55479-UP", "SCC: C2"] analogs:["7081H00030"] \|$1.
1	708-1H-32130	[1]	Shaft Komatsu China
			["SN: 55479-UP", "SCC: C2"]
2	708-17-05010	[1]	Washer Kit Komatsu	0.09 kg.
			["SN: 55479-UP", "SCC: C2"] analogs:["7082700230"]
3	708-17-12780	[1]	Ring, Snap Komatsu	0.015 kg.
			["SN: 55479-UP", "SCC: C2"]
4	708-1H-22150	[1]	Bearing Komatsu OEM	1.25 kg.
			["SN: 55479-UP", "SCC: C2"] analogs:["7081H12151"]
5	708-27-22811	[1]	Seal, Oil Komatsu	0.101 kg.
			["SN: 55479-UP"] analogs:["7082722810"]
6	708-2H-22160	[1]	Spacer Komatsu	0.06 kg.
			["SN: 55479-UP"]
7	04065-08225	[1]	Ring, Snap Komatsu	0.024 kg.
			["SN: 55479-UP"]
	708-2H-04750	[1]	Cylinder Block Assembly Komatsu	8.352 kg.
			["SN: 55479-UP", "SCC: C2"] analogs:["7082H04620"] \|$12.
10	708-18-13230	[1]	Pin Komatsu	0.01 kg.
			["SN: 55479-UP", "SCC: C2"]
11	04065-05820	[1]	Ring, Snap Komatsu	0.01 kg.
			["SN: 55479-UP", "SCC: C2"]
12	708-2H-33140	[1]	Seat Komatsu	0.1 kg.
			["SN: 55479-UP", "SCC: C2"]
13	708-2H-33150	[1]	Spring Komatsu	0.29 kg.
			["SN: 55479-UP", "SCC: C2"]
14	708-2H-23141	[1]	Seat Komatsu	0.03 kg.
			["SN: 55479-UP", "SCC: C2"]
15	708-2H-23350	[1]	Guide, Retainer Komatsu	0.24 kg.
			["SN: 55479-UP", "SCC: C2"] analogs:["R7082H23350"]
16	708-2H-23360	[3]	Pin Komatsu	0.006 kg.
			["SN: 55479-UP", "SCC: C2"]
17	708-2H-33343	[1]	Retainer, Shoe Komatsu	0.45 kg.
			["SN: 55479-UP", "SCC: C2"]
18	708-2H-33311	[9]	Piston Subassembly Komatsu	0.36 kg.
			["SN: 55479-UP", "SCC: C2"]
	708-2H-04690	[1]	Cradle Subassembly Komatsu	8 kg.
			["SN: 55479-UP", "SCC: C2"] \|$24.
21	04020-01434	[1]	Pin, Dowel Komatsu	0.044 kg.
			["SN: 55479-UP", "SCC: C2"]
22	07000-B1009	[1]	O-ring Komatsu China	0.001 kg.
			["SN: 55479-UP", "SCC: C2"] analogs:["7082L23910"]
23	01252-61235	[6]	Bolt, Hexagon Socket Head Komatsu	0.048 kg.
			["SN: 55479-UP", "SCC: C2"] analogs:["801105554", "0125231235"]

708-1W-01031 708-1H-00030 Hydraulic Pump For Komatsu WA500-6 Bulldozer 2

708-1W-01031 708-1H-00030 Hydraulic Pump For Komatsu WA500-6 Bulldozer 3

Product Descriptio

For Kobelco	main pump number	For Sumitomo	main pump number
SK60SR/70SR	K3SP36B-(Without gear pump)	SH130	K3V63DTP-9N2B
SK60SR/70SR	K3SP36B-(Dual gear pump)	SH130-5	K7V63DTP-9Y2C
SK135/130	K3V63DTP-0E01/0E02	SH200-1	K3V112DT-9C12(12T)
SK135-8/140-8/130-8	K7V63DTP-0E13	SH200-1	K3V112DT-9C12(14T)
SK200SR	K5V80DTP-0E02	SH240-5/SH200A5	K3V112DTP-9Y14
SK200-8/210-8/250-8	K3V112DTP-YT0K	SH200A3	K3V112DTP-9N49
SK230-6E	K3V112DTP-9TEL	SH290-5	K5V140DTP-9Y15
SK200-6(with aluminium base)	K3V112DTP-9TDL	SH300A3	K5V140DTP-9N0A
SK200-6(iron base)	K3V112DT-9T1L	SH350-5/SH300-5/CX360	K5V160DTP-9Y04
SK200-10/250-10	K7V125DTP-0E3K	SH350-5 (K3V180)	K5V160DTP180R-9Y04
SK330-6E (D3V112)	K3V112DTP-9TBR	SH450-5	K3V180DTP-9Y0A
SK330-6 (D3V112)	K3V112DTP-9TBS
SK350-8	K5V140DTP-YT0K
SK330-6E(D5V140)	K5V140DTP-9TBR
SK330-6 (D5V140)	K5V140DTP-9TBS
SK350-10	K7V140DTP-0E3K
SK450-6/-6E	K3V180DTH-9TOV
SK460-8	K5V200DPH-YTOK

For Kato	main pump number	For XCMG	main pump number
HD512	K3V63DT-9N04	XE150	K3V63DT-9N4H/9N2H
HD700 HD820-1/2/3	K3V112DT-9N1A(14T)	XE150	K7V63DTP-9N0E
HD700 HD820-1/2/3	K3V112DT-9N1A(12T)	XE195/210/215/230/240	K3V112DT-9NC9
HD700 HD820-1/2/3	K3V112DT-9N1A(14T)	XE195/210/215/230/240	K3V112DT-9ND9
HD700 HD820-1/2/3	K3V112DT-9N1A(12T)	XE335C	K3V140DT-9ND9
HD820-R	K3V112DT-9N7A	XE370C2/C3	K5V160DTH-9N3A/9N4A
HD1430	K3V180DT-9N15	XE450/470C3/490	K5V200DTH-9NOH
HD2045	K3V180DTH-9N2S

for Volvo	main pump number	For Doosan	main pump number
EC140	K3V63DT-9NOT	DH150	K5V80DTP-HNOV
EC145	K5V80DT-9NOJ	DX150	K3V63DT-9N0T
EC210/EC240/EC210B	K3V112DT-9N24	DH80/R80	AP2D36
SE240-3/EC240B	K3V112DT-9N2A	DH120/S130/150-7	K3V63DT-HNOV
EC210D	K3V112DT-1E05	DH150	K3V63DTP-HNOW
EC290	K3V140DT-9N04	DH225-7	K3V112DT-HN0V
EC250D	K5V140DT-1E05	DX225	K3V112DTP-9N1T
EC300D	K5V160DT-1E05	DH225-9(power takeoff)	K3V112DTP-HN2M
EC360()/EC380	K3V180DT-9N56(gear pump)	DH225-9-E(power takeoff)	K3V112DTP-9N2M
EC360(new)/EC380	K3V180DT-9N05(Without gear pump)	DX260(power takeoff)	K3V112DTP-9NM9
EC360	K3V180DTP-9N05	DH258	K3V112DTP-HN1F
EC380(new)	K3V180DT-9N5P	S290	K3V140DT-HNOV
EC460	K3V180DTH-9N2B	S300-7	K5V140DTP-9N01
EC460	K5V200DTH-9N0B	DX300	K5V140DTP-9N07
EC480D(new)	K5V200DTP-9N8X	DH320	K3V180DT-HN0P
EC480D	K5V200DTH-9N2Y	EC360 转 DH500	K5V200DTP-9N05
		SY335转DH500	K5V200DTH-DH500

For HYUNDAI	main pump number	For Sany	main pump number
R130	K5V80DTP-9N05/9N01	SY75	K3VL80B-10RSM-L11-TB110
R140-7/170-7	K5V80DTP-9C05	SY75(Electronic control)	K3VL80/B-10RSM-L1/1-TB307
R150	K5V80DTP-9N0W	SY135/SY135-5/-8	K7V63DTP-0E23
R130/150/160	K3V63DT-9N1S/9N01	SY130	K3V63DT-9N2H
R130/140-7	K3V63DT-9COS	SY135	K3V63DT-9POH
R215-7	K3V112DT-9N3P	SY205/215(Negative control)CM	K3V112DTP-9TCM
R215-9	K3V112DTP-9P12	SY205/215(Positive control)8L	K3V112DTP-9T8L
R215-9T/R225-9T/275-9T	K3V112DTP-9N62	SY205/215(six holes)0E	K3V112DTP-0E11
R210-7/220-7/225-7	K3V112DT-9C32	SY245/265	K7V125DTP-0E05/0E09
R290-7	K3V140DT-9C12	SY235	K5V140DTP-0E01
R300-7/305LC-7	K5V140DTP-9C12	SY235	K5V140DTP-9T1L
R320-3	K3V180DT-9N69	SY335	K5V160DTP-9T06
R320-7/335-7	K3V180DT-9C69	SY335	K5V160DTH-9T06
R350/360-3/R385-9T	K3V180DTH-9N1S/9N4S	SY335	K5V200DTH-9N1H
R360-7/7A	K3V180DTH-9C0S	SY385	K5V200DTH-0E30
R375/360-7	K3V180DTP-9COG	SY365	K5V160DTH-0E60
R375/360-7	K3V180DTP-9COG	SY330/360	K3V140DT-9TCM
R455	K5V200DTH-9C0Z	SY285	K3V140DT-9T1L
		SY485	K5V212DPH-OE81

For Hitachi	main pump number	For Liugong	main pump number
ZX200	HPV102	LG908	K3SP36C
ZX200-3	HPV118	LG915	K3V63DT-9N2J
ZX330/350/360-1	HPV145	LG920/922/923/925	K3V112DT-9N64
ZX330-3	HPV145	LG230	K3V112DT-2N59
ZX470-3	K5V200DPH-0E02	LG	K3V112DTP-9NE4
ZX450-1	K5V200DPH-0E11	LG925EII	K5V140DTP-9N25

For Komatsu	main pump number	For Zoomlion	main pump number
PC200-7	HPV95	ZE150E	K7V63DTP-9N0E
PC200-8	HPV95	ZE205/210/230/260	K3V112DT-9N94

	main pump number	generic brand	main pump number
312B	K3V63DT-9N2D	Universal model	K3V63DT-9N00(14T)
312C	SBS80	Universal model	K3V112DT-9N00(14T)
320C/320D	SBS120

Product Paramenters

708-1W-01031 708-1H-00030 Hydraulic Pump For Komatsu WA500-6 Bulldozer 4

Maintainance

The bulldozer hydraulic pump is one of the key components of the bulldozer. Maintaining the hydraulic pump can extend its service life and ensure the normal operation of the bulldozer. The following are some basic steps for bulldozer hydraulic pump maintenance:

1. Regularly replace the hydraulic oil: Hydraulic oil is the key to the normal operation of the hydraulic system. Regularly replacing the hydraulic oil can effectively remove contaminants and maintain the stable performance of the oil. According to the recommendations of the bulldozer manufacturer, select the appropriate hydraulic oil brand and grade, and replace the hydraulic oil at the prescribed time interval.
2. Pay attention to the quality of the hydraulic oil: The hydraulic oil must be kept clean and of appropriate viscosity. Regularly check whether there are impurities or contaminants in the hydraulic oil, and use a filter element or filter to filter it. Ensure that the viscosity of the hydraulic oil meets the requirements of the bulldozer manufacturer.
3. Check the seals of the hydraulic pump: The seals of the hydraulic pump are key components to prevent leakage. Regularly check the seals of the hydraulic pump, including O-rings, seals, etc., to ensure that they are intact. If worn or aged seals are found, they should be replaced in time.
4. Clean the hydraulic pump regularly: The hydraulic pump will accumulate dirt and impurities during use, affecting its normal operation. Clean the hydraulic pump regularly to remove dirt and impurities in the pump. Use appropriate cleaning agents when cleaning, and make sure that the residue in the pump is cleaned after cleaning.
5. Check the working pressure of the pump: The working pressure of the hydraulic pump needs to meet the requirements of the bulldozer manufacturer. Check the working pressure of the hydraulic pump regularly to ensure that it is within the normal range. If necessary, adjust or repair it.
6. Check the hydraulic pipeline regularly: The hydraulic pipeline is the blood vessel of the hydraulic system. Check the hydraulic pipeline regularly for leaks, wear or damage. If any problems are found, replace or repair the hydraulic pipeline in time.
7. Pay attention to the working temperature of the hydraulic pump: The working temperature of the hydraulic pump needs to be controlled within the range specified by the bulldozer manufacturer. Excessive temperature can cause damage to the hydraulic pump, so make sure that the cooling system of the hydraulic system is working properly and clean the cooler regularly.
8. Perform regular maintenance of the hydraulic pump: Perform regular maintenance of the hydraulic pump according to the bulldozer manufacturer's maintenance manual, including cleaning, lubriion and tightening of connectors. Ensure that the hydraulic pump is in good working condition.
Please note that the above steps are only general guidelines, and the specific maintenance methods and cycles may vary depending on the bulldozer model and manufacturer. Before performing hydraulic pump maintenance, it is recommended to consult the bulldozer's owner's manual or consult a professional technician for accurate maintenance information.

708-1W-01031 708-1H-00030 Hydraulic Pump For Komatsu WA500-6 Bulldozer 5

About Xinfeng Machinery (XF) parts:

708-1W-01031 708-1H-00030 Hydraulic Pump For Komatsu WA500-6 Bulldozer 7

Advantages

Warehouse Display

Packaging and Delivery

708-1W-01031 708-1H-00030 Hydraulic Pump For Komatsu WA500-6 Bulldozer 12

FAQ
1. How to quickly and accurately buy products what lneeded?
A: Provide the original parts number to us to check.

2. How long have you been in the excavator
A: We are engaged in excavator parts since 1998

3. lfI don't know the part number,what shouldI do?
A: Please send us size and pictures of old products.

4. What is the warranty of the products?
A: The warranty is 6/12 Months based on the specific product.

5. How long is your delivery time?
A: The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.

6. Which shipping term you can supply?

A: By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)

7. What is your MOQ?
A: Small order and sample order are acceptable

8. Do you have any After-Sales service?
A: Yes!Our
