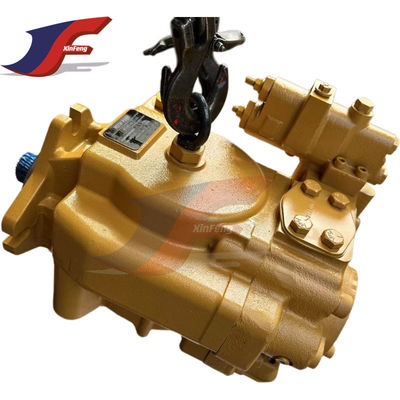

Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6E-4248 | [1] | SHAFT | |
| 2 | 6E-4237 | [1] | BEARING | |
| 3 | 6E-4224 | [1] | PLUG-SWASHPLATE | |
| 4 | 033-6036 | [1] | SEAL-O-RING | |
| 5 | 9S-4190 | [1] | PLUG-O-RING (7/8-14-THD) | |
| 6 | 9T-1699 | [1] | SPRING | |
| 7 | 9T-1710 | [1] | POPPET | |
| 8 | 9T-1636 | [1] | SEAT | |
| 9 | 6E-4227 | [1] | COVER | |
| 10 | 6V-8837 M | [3] | BOLT (M6X1X16-MM) | |
| 11 | 4F-4097 | [1] | SEAL-O-RING | |
| 12 | 6E-4236 | [1] | BEARING | |
| 13 | 3E-4302 M | [2] | SCREW-FLAT HEAD (M4X0.7X10-MM) | |
| 14 | 8T-5039 | [3] | SEAL-O-RING | |
| 15 | 4H-1440 | [2] | PIN-SPRING | |
| 16 | 8T-0343 M | [3] | BOLT-SOCKET HEAD (M12X1.75X55-MM) | |
| 17 | 3E-8008 M | [1] | BOLT-SOCKET HEAD (M16X2X90-MM) | |
| 18 | 6E-6044 Y | [1] | VALVE GP-PUMP CONTROL (PRESSURE, FLOW COMPENSATOR)(IMPLEMENT PUMP OUTLET CONTROL) | |
| 19 | 6E-4245 | [1] | HOUSING | |
| 20 | 6V-8337 M | [4] | BOLT-SOCKET HEAD (M8X1.25X35-MM) | |
| 21 | 033-6027 | [1] | SEAL-O-RING | |
| 22 | 7K-8876 | [1] | CUP-BEARING | |
| 23 | 6E-4213 | [1] | KIT-BIAS PISTON (PUMP) | |
| (INCLUDES SPRING, ROD, PISTON & PACKING) | ||||
| 24 | 6E-4214 | [1] | SPRING-BIAS | |
| 25 | 6E-4216 Y | [1] | ROTATING GP-PUMP (IMPLEMENT) | |
| 26 | 6E-4225 | [1] | GASKET | |
| 27 | 7L-9061 | [2] | SEAL-O-RING | |
| 28 | 3E-7417 | [4] | PLUG | |
| 29 | 8T-7876 | [4] | SEAL-O-RING | |
| 30 | 6E-4234 | [1] | PLATE-VALVE | |
| 31 | 005-0471 | [1] | CONE-BEARING | |
| 32 | 005-0469 | [1] | CUP-BEARING | |
| 33 | 103-6282 B | [1] | SHIM PACK (INCLUDES 17-SHIMS) | |
| 34 | 9T-1652 | [1] | PIN | |
| 35 | 6E-4215 | [1] | KIT-PISTON (PUMP) | |
| (INCLUDES PACKING, ROD & PISTON) | ||||
| 36 | 6E-4221 Y | [1] | SWASHPLATE GP | |
| 37 | 6L-8797 | [2] | RING-RETAINING | |
| 38 | 9X-7547 | [2] | SEAL-LIP TYPE | |
| 39 | 7K-8877 | [1] | CONE-BEARING | |
| 40 | 6E-4247 | [1] | HEAD | |
| 41 | 6E-2943 | [1] | PLUG | |
| 42 | 6E-4321 | [1] | SPACER (36X48X2.5-MM THK) | |
| 43 | 3E-8007 M | [1] | BOLT-SOCKET HEAD (M12X1.75X90-MM) | |
| 44 | 219-6915 | [1] | BOLT (M16X2X95-MM) | |
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
Maintainance
The fan pump of a Komatsu bulldozer is an important component that requires regular maintenance to ensure its normal operation and extended service life. Here are some basic steps to maintain the fan pump of a Komatsu bulldozer:
Cleaning the fan pump: It is very important to clean the fan pump regularly because dust, mud and other impurities may clog the air inlet and outlet of the fan pump. Use compressed air or a water flusher to remove dirt and impurities accumulated on the fan pump.
Check the drive belt: Check the tightness and wear of the drive belt. If the drive belt is loose or worn, it should be replaced in time.
Lubrie the bearings: The bearings of the fan pump need to be lubried regularly to reduce friction and wear. Use appropriate lubriing oil or grease to lubrie the bearings.
Check the cooling system: Make sure the cooling system of the fan pump is working properly. Check the water level and quality of the coolant, ensure sufficient coolant supply, and clean or replace the filter.
Check the safety device: Make sure the safety device of the fan pump is working properly, such as the overheat protection device and the pressure switch. If a fault or damage is found, it should be repaired or replaced in time.
