Home /Products/Excavator Swing Motor/PC200-6 PC220-6 6D102 Excavator Parts Swing Motor Assy 706-75-01170

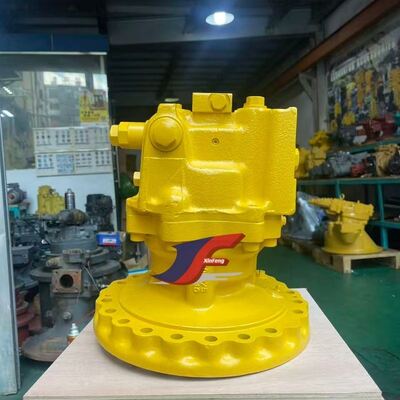

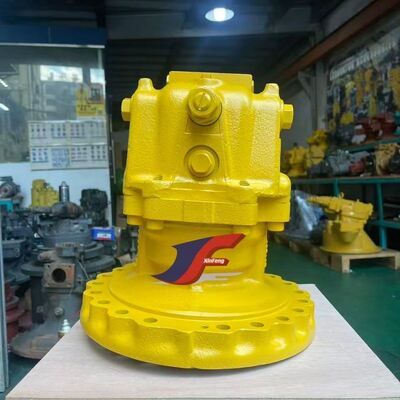

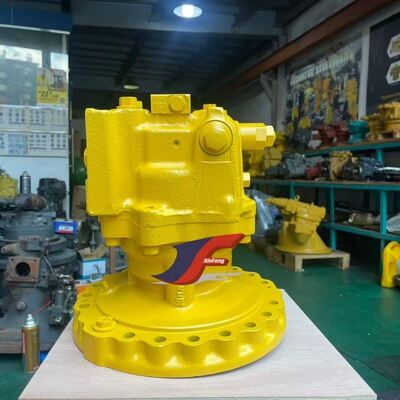

PC200-6 PC220-6 6D102 Excavator Parts Swing Motor Assy 706-75-01170

1 Sets
MOQ
Negotiable
Price
PC200-6 PC220-6 6D102 Excavator Parts Swing Motor Assy 706-75-01170
Features Gallery Product Description Request A Quote
Features
Specifications
Part Number: 706-75-01170
Video Outgoing-inspection: Provided
Product Name: PC200-6/PC220-6
Place Of Origin: China
Product Description: Excavator Parts Swing Motor
Delivery Time: 3 Days
Warranty: 6 Months
Packing: Wooden Box
Quality: High Quality
Weight: 80KG
Highlight:

PC200-6 excavator swing motor

,

PC220-6 swing motor assembly

,

6D102 excavator parts with warranty
Basic Infomation
Place of Origin: Japan
Brand Name: Komatsu
Model Number: PC200-6/PC220-6
Payment & Shipping Terms
Packaging Details: Wooden Case Packing
Delivery Time: 3-5 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Supply Ability: 500-Sets/month
Product Description
PC200-6 PC220-6 6D102 Excavator Parts Swing Motor Assy 706-75-01170
Operation Instructions
Replacing an excavator swing motor is complex and demands professional expertise. Prioritize safety by fully shutting down and stabilizing the machine, and wearing protective gloves and goggles. Verify the fault lies in the swing motor by inspecting related parts to avoid unnecessary replacement. Prepare required tools like wrenches, jacks, and ladders. Refer to the official manual or consult specialists for operational procedures. Disconnect power before removing the old motor step by step. Fit the new motor correctly, and fasten screws with proper torque—neither over-tightened nor loose—to prevent component damage.
PC200-6S, PC200LC-6S S/N C10781-UP swing motor diagram
Parts Breakdown
Position Part No Quantity Parts Name Comments
[1] MOTOR ASS'Y Komatsu 65 kg Swing Motor Assembly SN: C10001-UP
[-1] THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1640-01A1C T0 Y1640-03A1C
1 O-RING Komatsu 0.01 kg O-Ring SN: C10001-UP
2 BOLT Komatsu 0.081 kg Bolt SN: C10001-UP, analogs: 7051903470, 7067540360
3 SHAFT,DRIVE Komatsu China - Drive Shaft SN: C10001-UP
4 BEARING Komatsu 2.42 kg Bearing SN: C10001-UP
5 SPACER Komatsu 0.635 kg Spacer SN: C10001-UP
6 SPRING Komatsu 0.03 kg Spring SN: C10001-UP
7 SEAT Komatsu 0.05 kg Seat SN: C10001-UP
8 BEARING Komatsu 0.524 kg Bearing SN: C10001-UP
9 SPACER KIT Komatsu 0.091 kg Spacer Kit SN: C10001-UP
10 RING,SNAP Komatsu China 0.007 kg Snap Ring SN: C10001-UP, analogs: 20Y3029190
11 SEAL,OIL Komatsu 0.15 kg Oil Seal SN: C10001-UP
12 SPACER Komatsu 0.042 kg Spacer SN: C10001-UP, analogs: 7067G41910
13 RING Komatsu 0.013 kg Ring SN: C10001-UP
14 BLOCK,CYLINDER Komatsu China - Cylinder Block SN: C10001-UP
15 PLATE,VALVE Komatsu 0.33 kg Valve Plate SN: C10001-UP
16 PIN,DOWEL Komatsu China - Dowel Pin SN: C10001-UP
17 SHAFT,CENTER Komatsu China - Center Shaft SN: C10001-UP
18 RING,CENTER Komatsu China - Center Ring SN: C10001-UP
19 SPRING Komatsu 0.05 kg Spring SN: C10001-UP
20 RETAINER KIT Komatsu 0.201 kg Retainer Kit SN: C10001-UP
22 PISTON SUB ASS'Y Komatsu China - Piston Sub Assembly SN: C10001-UP
23 PLATE Komatsu 0.38 kg Plate SN: C10001-UP
24 PLATE Komatsu China - Plate SN: C10001-UP
25 DISK Komatsu China - Disk SN: C10001-UP
26 PISTON,BRAKE Komatsu 1.611 kg Brake Piston SN: C10001-UP
27 RING,BRAKE Komatsu 0.402 kg Brake Ring SN: C10001-UP
28 O-RING Komatsu China 0.03 kg O-Ring SN: C10001-UP, analogs: 0700002145, R0700012145
29 O-RING Komatsu 0.012 kg O-Ring SN: C10001-UP
30 SPRING Komatsu China - Spring SN: C10001-UP
Swing motor technical diagramSwing motor installation view
Maintenance and Repair
I. Daily Inspection (Before Start-up)
1. Visual Leak Inspection: Check the motor housing, oil pipe joints, motor output shaft oil seal, and housing drain port for any oil seepage or leakage. If the oil seal leaks, hydraulic oil will enter the reducer, diluting the gear oil and damaging the gears.
2. Listen for Abnormal Noises: Rotate the machine left and right, listening for any metallic friction or clicking sounds; check for any jamming or vibration during rotation.
3. Slewing Brake Check: Park the machine on a slope and check if it rolls (drifts). Failure to brake is a major safety hazard; continue working immediately.
4. Hydraulic Oil Level and Temperature: Check the hydraulic oil dipstick when the machine is cold; the oil level should be within the standard range. During operation, the oil temperature should not exceed 80℃, as high temperatures will accelerate the aging of seals.
5. Slewing Bearing Large Gear Ring: Clean off any dirt, inspect the gear surface, and apply grease as needed (routinely apply slewing bearing grease every 250 hours). Check for any loose connecting bolts.
About Xinfeng Machinery (XF) Parts
Xinfeng Machinery parts catalog
Excavator Spare Parts
Swing Motor
Travel Motor
Fan Motor
Swing Gearbox
Travel Gearbox
Relief Valve
Gear Pump
Electrical Parts
Distribution Valve
Engine Assembly
Final Drive Assy
Hydraulic Pump
Xinfeng Machinery warehouseWarehouse display of excavator parts
Frequently Asked Questions
1. How to quickly and accurately buy products I need?
Provide the original parts number to us to check.
2. How long have you been in the excavator parts business?
We are engaged in excavator parts since 1998.
3. If I don't know the part number, what should I do?
Please send us size and pictures of old products.
4. What is the warranty of the products?
The warranty is 6/12 Months based on the specific product.
5. How long is your delivery time?
The normal delivery time is 3-5 days for stock products after getting payment. If not in stock, we will inform you the time required.
6. Which shipping terms can you supply?
By sea, air or by express (DHL, Fedex, TNT, UPS, EMS)
7. What is your MOQ?
Small order and sample order are acceptable.
