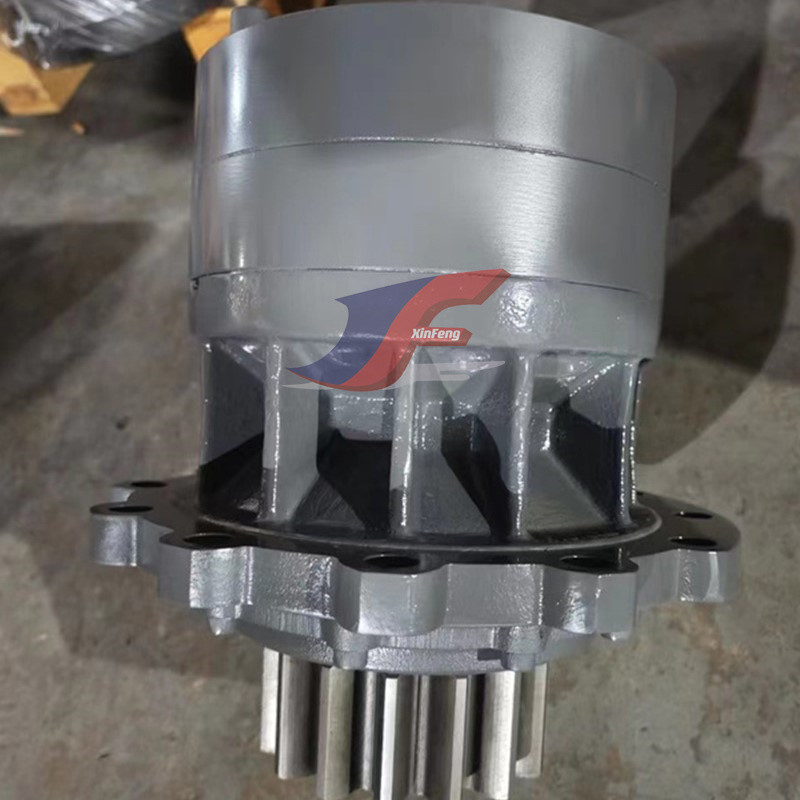

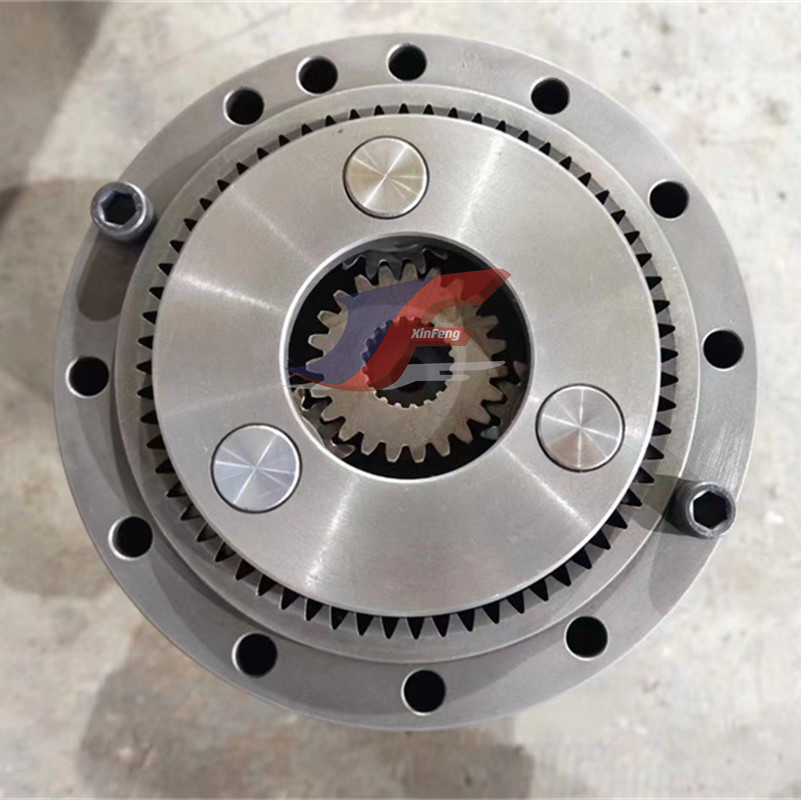

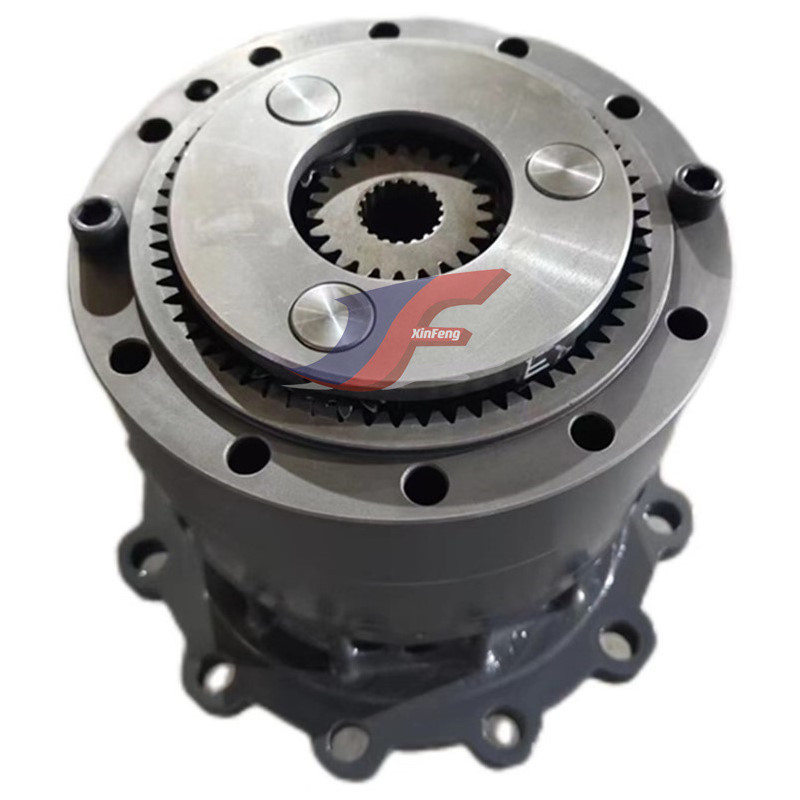

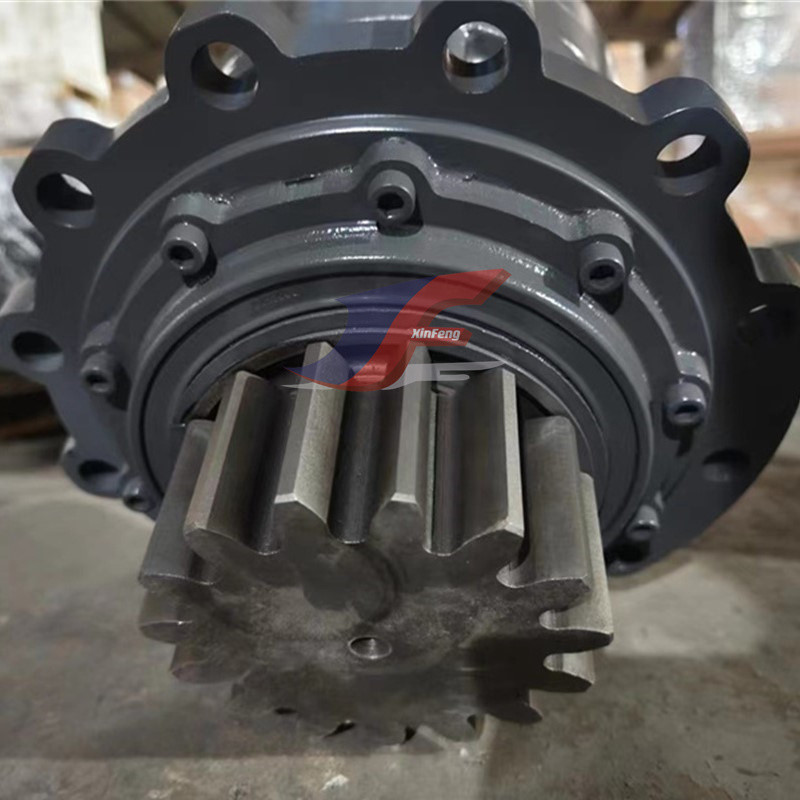

2023964 2023965 2024894 Swing Reduction Gearbox Excavator Spare Part EX100-1 EX120-1
Product Description
| Pos. | Part No | Qty | Parts name | Comments |
| 0 | 2023962 | [1] | Planet Pinion Carrier | (SUB FOR TH108257) |
| 1 | 2024894 | [1] | Planet Pinion Carrier | (SUB FOR TH108258) |
| 2 | 4641995 | [1] | Plate | (SUB FOR TH108259 OR 4176070) |
| 3 | 4195372 | [1] | Plate | (SUB FOR TH108260) |
| 4 | 4186262 | [3] | Pin | (SUB FOR TH108261) |
| 5 | 4207801 | [3] | Pin | (SUB FOR TH108262) |
| 6 | 1015518 | [1] | Housing | (SUB FOR TH108263) |
| 7 | 34M7036 | [6] | Spring Pin | 5 X 45 MM (SUB FOR TH108264) |
| 10 | 3037606 | [1] | Sun Gear | (SUB FOR TH108265) |
| 11 | 3038482 | [1] | Sun Gear | (SUB FOR TH108266) |
| 13 | 3037605 | [3] | Gear | (SUB FOR TH108267) |
| 14 | 4184840 | [3] | Needle Bearing | (SUB FOR TH108268) |
| 15 | 9727159 | [3] | Gear | (SUB FOR TH108269) |
| 16 | 4176071 | [12] | Plate | (SUB FOR TH108270) |
| 19 | 40M7150 | [1] | Snap Ring | |
| 20 | TH108271 | [1] | Spherical Roller Bearing | |
| 21 | TH108272 | [1] | Spherical Roller Bearing | |
| 23 | 2024895 | [1] | Ring Gear | (SUB FOR TH108273) |
| 26 | 2023963 | [1] | Shaft | (SUB FOR TH108275) |
| 27 | 3037604 | [1] | Cover | (SUB FOR TH108276) |
| 28 | J901032 | [10] | Screw | (SUB FOR TH102040) |
| 29 | 12M7066 | [10] | Lock Washer | 10 MM |
| 30 | J401232 | [2] | Dowel Pin | (SUB FOR TH110080) |
| 35 | AT130902 | [1] | Seal | (SUB FOR TH108277) |
| 37 | CH17447 | [1] | Packing | (SUB FOR TH111724) |
| 41 | 4194712 | [1] | Drain Valve | (SUB FOR TH108278) |
| 46 | 94-2024 | [1] | Fitting Plug | (SUB FOR TH101292) |
| 50 | 3038685 | [1] | Sleeve | (SUB FOR TH108282) |
| 51 | 4204074 | [1] | Snap Ring | (SUB FOR TH108283) |
| 52 | 4204644 | [2] | Magnet | (SUB FOR TH108284) |
| 53 | 21M7250 | [2] | Screw | M4 X 12 (SUB FOR 4204645, ALONG WITH 12H315 AND 24M7117) |
| 53 | 12H315 | [2] | Lock Washer | 0.164" (SUB FOR 12M7063) |
| 53 | 24M7117 | [2] | Washer | 4.300 X 9 X 0.800 MM |
| 54 | 9097684 | [1] | Drive | (SUB FOR AT128467) |
Product Description
Control Valves play a critical role in the operation of machinery, powering a wide range of equipment used in industries such as construction, agriculture, and manufacturing.
Maintenance method
1. Replace the hydraulic oil, oil return filter element, and pilot filter element according to the prescribed maintenance period, and pay attention to whether there are iron filings or copper filings adsorbed on the filter element. When using a breaker, the hydraulic oil deteriorates more quickly and the replacement cycle should be shortened.
2. Do not work without oil for a long time. After replacing hydraulic oil or hydraulic components, pay attention to bleeding out the air. Pay attention to waterproofing, do not work in deep water, and do not directly rinse electrical components with water when cleaning.
3. Replace the gear oil of the slewing reducer and traveling reducer periodically.
4. Check the structure every day for cracks and deformation. When parking the excavator, pay attention to the surrounding environment. Park it on a solid, stable and hard surface. Do not park it near a river, a cliff or a hillside to prevent accidents.
5. When parking, the bucket cylinder is fully retracted and the bucket falls to the ground to prevent the cylinder from being hit.
We can supply huge stock for excavator spare parts ( various brands ) :
Hydraulic parts: hydraulic pump assy , hydraulic pump parts(block assy, plate valve, guide retainer, retainer shoe, piston sub assy, cradle assy--cradle, cam rocker), swing motor, swing machinery, swing circle, main control valve, travel motor, boom cylinder, arm cylinder, bucket cylinder ,hydrualic valve and so on.
Engine parts : piston liner kits, main &con rod bearings, valves, cylinder gasket kits, plunger/delivery valve/nozzle,cylinder
block, cylinder head, crankshaft, camshaft, starting motor, oil /water / feed pump, fan blade, turbocharger,thermostat and so on.
electric parts:Computer board, monitor, engine line speed, hydraulic pump line speed, starter motor, pressure switch.
