Features

Specifications

Part Number: 333-2959

Video Outgoing-inspection: Provided

Product Name: E336D 336D2 336E 336F Swing Gearbox

Delivery Time: 1-3 Days

Warranty: 6 Months

Packing: Wooden Case

Product Class: Excavator Swing Motor Gearbox

Quality: High Quaity

Condition: New

Place Of Origin: Guangdong

Highlight:

Drive Swing Redution Gearbox

Swing Redution Gearbox E336D

333-2959

Basic Infomation

Place of Origin: China

Model Number: E336D 336D2 336E 336F

Payment & Shipping Terms

Packaging Details: Wooden Case Packing

Delivery Time: 3-5 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500-Sets/month

Gallery

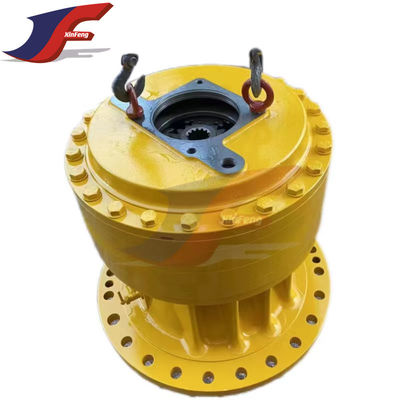

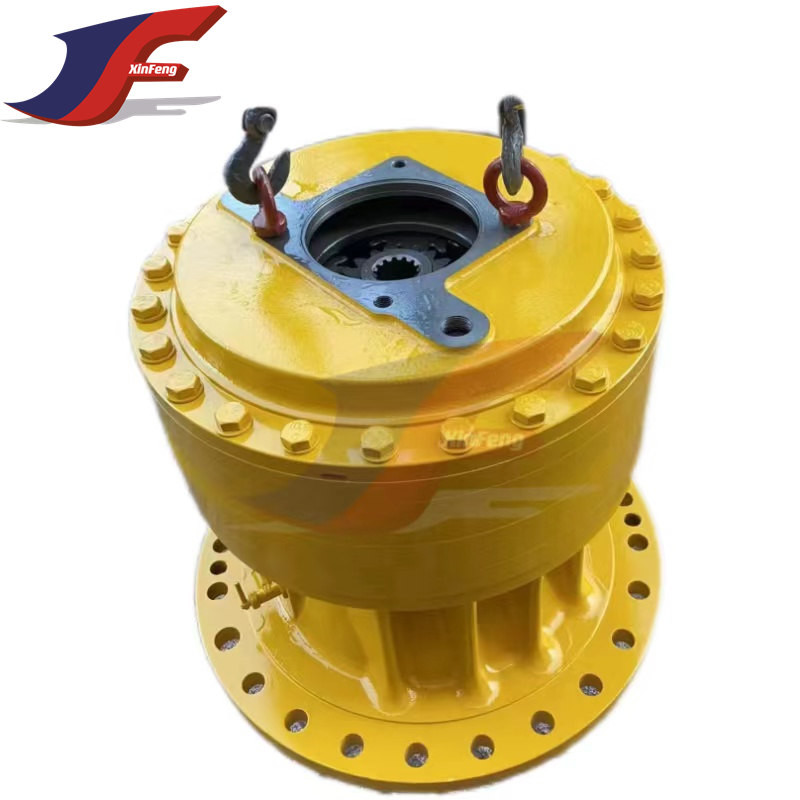

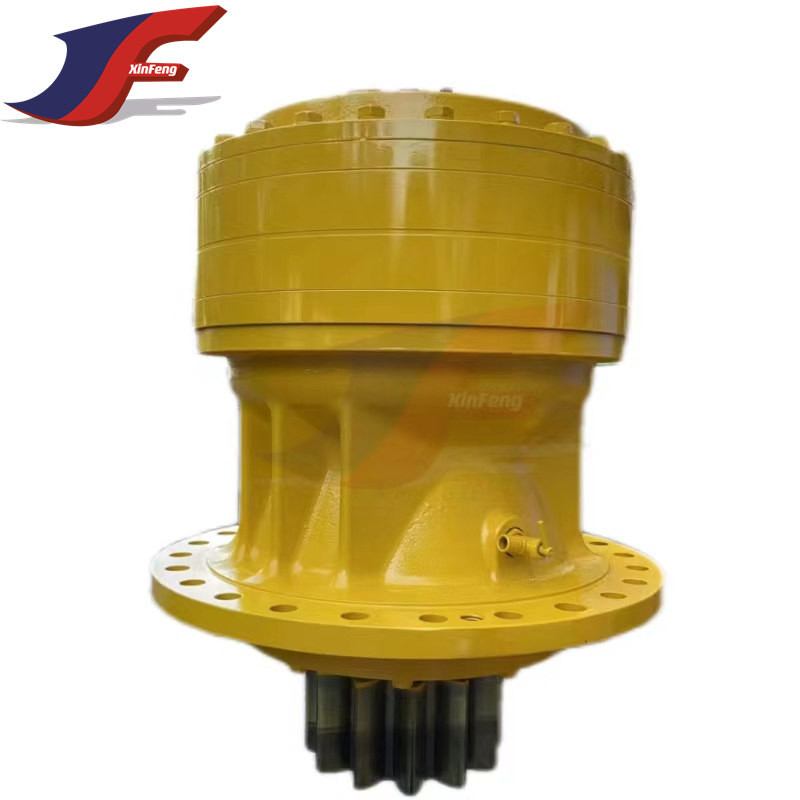

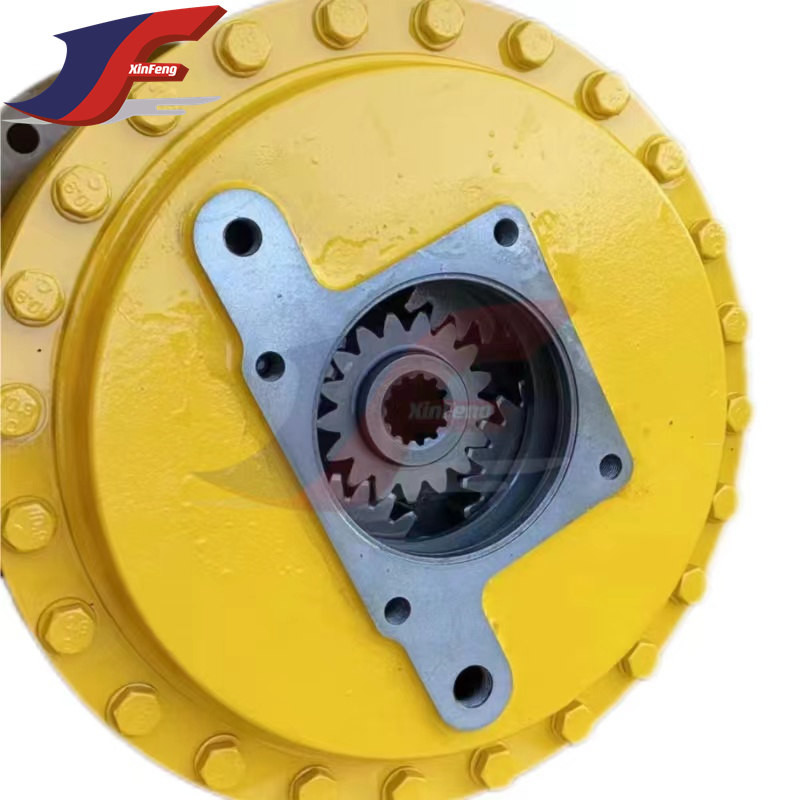

Drive Swing Redution Gearbox Part 333-2959 E336D 336D2 336E 336F

Product Description

E336D 333-2959 Swing Drive Group Reduction Gearbox for E336D 336D2 336E 336F

Product Descriptio

Pos.	Part No	Qty	Parts name
1	4H-6112	[1]	BREATHER (SWING DRIVE)
2	6V-7238	[1]	VALVE-SHUTOFF (SWING DRIVE)
3	7I-7611	[1]	CAGE
4	7I-7619	[1]	BEARING-ROLLER
5	7I-7684 M	[2]	SPACER (50X79.6X6-MM THK)
6	9U-8693	[1]	BEARING-ROLLER
7	093-1730	[1]	RING-RETAINING
8	094-1528	[8]	WASHER (53X84X1-MM THK)
9	096-1441	[1]	RING-RETAINING
10	110-7149	[1]	RING-RETAINING
11	114-1322	[1]	RING-RETAINING
12	114-1398	[1]	GAUGE-OIL LEVEL (SWING DRIVE)
13	114-1399	[1]	PIPE-GAUGE
14	127-3872 I	[1]	HOSE AS
15	136-2802	[2]	CONNECTOR
16	136-2803	[2]	CLIP
17	148-4600	[1]	GEAR-SUN (17-TEETH)
18	148-4601	[1]	GEAR-SUN (17-TEETH)
19	148-4602	[4]	GEAR-PLANETARY (24-TEETH)
20	148-4603	[4]	GEAR-PLANETARY (24-TEETH)
21	148-4604	[1]	GEAR-RING (67-TEETH)
22	148-4605	[1]	SHAFT-PINION
23	418-6218	[1]	CARRIER-PLANETARY
24	148-4608	[4]	SHAFT-PLANETARY
25	148-4609	[4]	SHAFT-PLANETARY
26	148-4611	[8]	WASHER (71.3X112X1-MM THK)
27	171-9413	[1]	SPACER (140.5X160X103.2-MM THK)
28	191-2511	[1]	CARRIER-PLANETARY
29	191-2513	[4]	BEARING AS-ROLLER
30	191-2514	[8]	BEARING AS
31	191-2524	[1]	HOUSING
32	199-4540	[1]	COVER-HOUSING
33	227-6215	[1]	BOSS (1/4-18-THD)
34	099-5194	[8]	PIN-SPRING
35	128-9170	[2]	SEAL-LIP TYPE
36	3K-0360	[1]	SEAL-O-RING
37	5M-4454	[1]	SEAL-O-RING
38	453-3447 M	[10]	BOLT (M12X1.75X40-MM)
39	451-2182	[12]	WASHER-HARD (13.5X25.5X3-MM THK)
40	8T-4244 M	[1]	NUT (M12X1.75-THD)
41	8T-4956 M	[1]	BOLT (M12X1.75X35-MM)
42	453-4169 M	[24]	BOLT (M16X2X200-MM)
43	451-2175	[24]	WASHER-HARD (17.5X30X3.5-MM THK)

	1U-8846 BF		SEALANT-GASKET
	B		USE AS REQUIRED
	F		NOT SHOWN
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART

Drive Swing Redution Gearbox Part 333-2959 E336D 336D2 336E 336F 0

Drive Swing Redution Gearbox Part 333-2959 E336D 336D2 336E 336F 1

About Xinfeng Machinery (XF) parts:

Drive Swing Redution Gearbox Part 333-2959 E336D 336D2 336E 336F 3

Advantages

Warehouse Display

Packaging and Delivery

Drive Swing Redution Gearbox Part 333-2959 E336D 336D2 336E 336F 7

FAQ
1.How to quickly and accurately buy products what lneeded?
A:Provide the original parts number to us to check.

2.How long have you been in the excavator
A:We are engaged in excavator parts since 1998

3.lfI don't know the part number,what shouldI do?
A:Please send us size and pictures of old products.

4.What is the warranty of the products?
A:The warranty is 6/12 Months based on the specific product.

5.How long is your delivery time?
A:The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.

6.Which shipping term you can supply?

A:By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)

7.What is your MOQ?
A:Small order and sample order are acceptable

8.Do you have any After-Sales service?
A:Yes!Our
