Features Gallery Product Description Request A Quote

Features

Specifications

Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction Works , Energy & Mining

Part Number: 705-55-34090 705-55-34110

Video Outgoing-inspection: Provided

Place Of Origin: Guangzhou, China

Brand Name: Original/oem

Part Name: WA300-1 WA380 Hydraulic Gear Pump

Delivery: 3 Working Days

Condition: New

Packing: Wooden Box,standar Packing With Safety

Warranty: 6 Months

Highlight:

705-55-34110

705-55-34090

Basic Infomation

Place of Origin: China

Brand Name: Komatsu

Model Number: WA300-1 WA380

Payment & Shipping Terms

Packaging Details: Wooden Case Packing

Delivery Time: 3-5 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500-Sets/month

Gallery

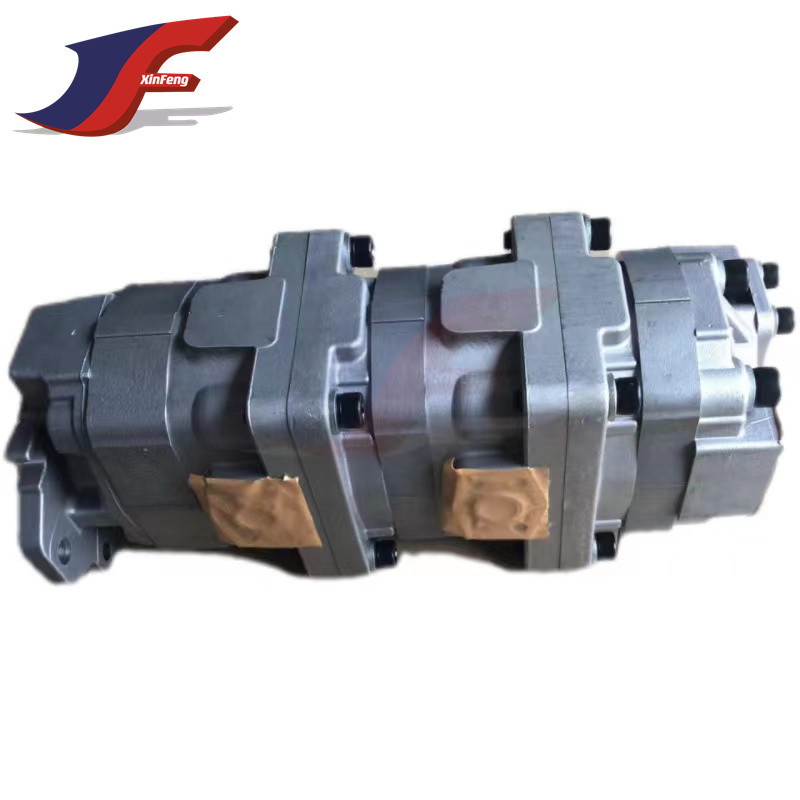

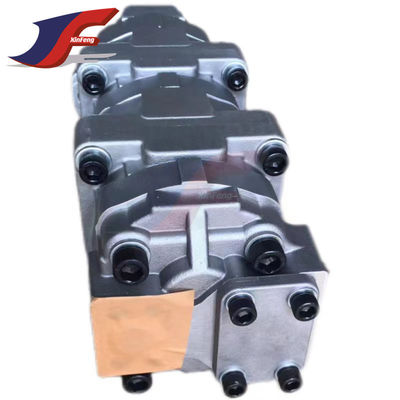

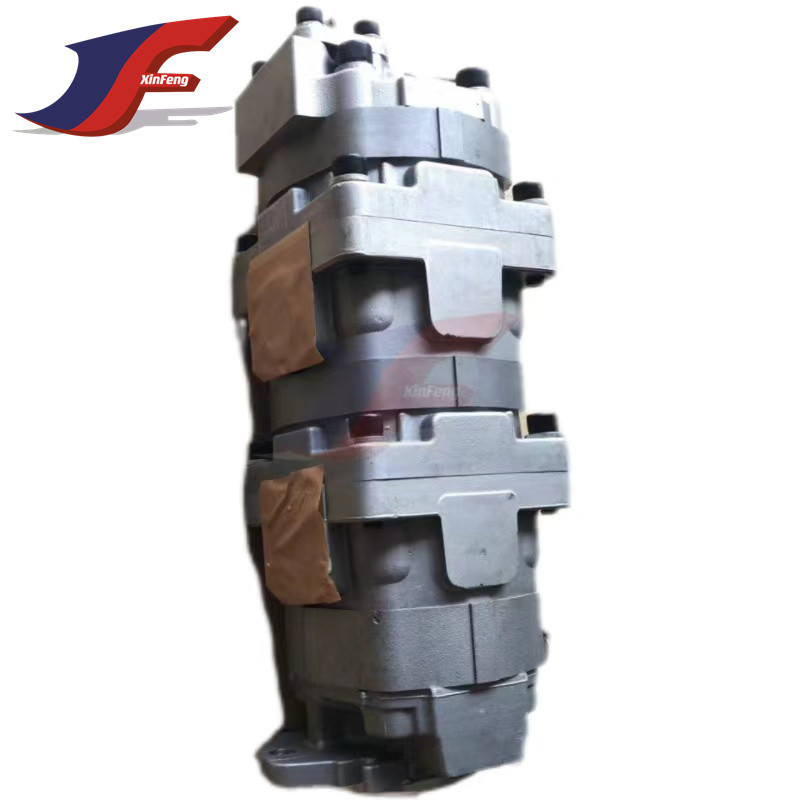

Gear Pump 705-55-34110 705-55-34090 Hydraulic Triple Pilot Pump

Product Description

WA300-1 WA380 gear pump 705-55-34090 hydraulic triple pilot pump 705-55-34110

Product Descriptio

Pos.	Part No	Qty	Parts name	Comments
	705-55-34110	[1]	PUMP ASSY Komatsu	37 kg.
			["SN: 30078-UP"] analogs:["7055534090"] \|1.
	705-55-34090	[1]	PUMP ASSY Komatsu	37 kg.
			["SN: 30001-30077"] analogs:["7055534110"] \|1.
	705-13-29740	[1]	PUMP ASSY (SAL28) Komatsu China
			["SN: 30078-UP"] analogs:["7051329730"] \|1.
	705-13-29730	[1]	PUMP ASSY (SAL28) Komatsu China
			["SN: 30001-30077"] analogs:["7051329740"] \|1.
1	705-17-03511	[1]	BRACKET Komatsu China
			["SN: 30001-UP"] analogs:["7051703510"]
1A.	705-17-03352	[2]	BUSHING,PLATE Komatsu China	0.05 kg.
			["SN: 30078-UP"] analogs:["7051703351"]
2	705-18-29010	[1]	CASE,GEAR Komatsu China
			["SN: 30001-UP"]
3	705-17-03140	[1]	COVER Komatsu	2.34 kg.
			["SN: 30001-UP"]
4	705-18-29450	[1]	GEAR,DRIVE Komatsu China
			["SN: 30001-UP"]
5	705-18-29510	[1]	GEAR,DRIVEN Komatsu China
			["SN: 30001-UP"]
6	705-17-03610	[2]	PLATE,SIDE Komatsu OEM	0.184 kg.
			["SN: 30001-UP"]
7	705-17-03443	[2]	RING,BACK-UP Komatsu China	0.05 kg.
			["SN: 30078-UP"] analogs:["7051703440"]
	705-17-03440	[2]	RING,BACK-UP Komatsu China	0.05 kg.
			["SN: 30001-30077"] analogs:["7051703443"] \|7.
8	705-17-03473	[2]	SEAL,SEAL Komatsu China	0.05 kg.
			["SN: 30078-UP"] analogs:["7051703470"]
	705-17-03470	[2]	SEAL,RING Komatsu China	0.05 kg.
			["SN: 30001-30077"] analogs:["7051703473"] \|8.
9	705-17-03381	[2]	O-RING Komatsu China	0.05 kg.
			["SN: 30078-UP"] analogs:["7051703380"]
	705-17-03380	[2]	O-RING Komatsu China	0.05 kg.
			["SN: 30001-30077"] analogs:["7051703381"] \|9.
10	04020-01228	[6]	PIN,DOWEL Komatsu	0.026 kg.
			["SN: 30001-UP"] analogs:["21T3016190"]
11	705-17-03710	[4]	BOLT Komatsu China
			["SN: 30001-UP"] analogs:["0125261690", "0125231690"]
12	01643-51645	[4]	WASHER Komatsu	0.021 kg.
			["SN: 30001-UP"]
14.	705-17-03370	[4]	BOLT Komatsu	0.087 kg.
			["SN: 30001-UP"] analogs:["0125261450"]
15.	705-17-04980	[4]	WASHER Komatsu	0.008 kg.
			["SN: 30001-UP"]
16.	705-17-03880	[1]	PLATE Komatsu	0.4 kg.
			["SN: 30001-UP"]
17.	07000-32055	[1]	O-RING Komatsu	0.01 kg.
			["SN: 30078-UP"] analogs:["07000E2055", "6505110750"]
	07000-02055	[1]	O-RING Komatsu China	0.03 kg.
			["SN: 30001-30077"] analogs:["0700012055"] \|17.
18.	01010-51230	[4]	BOLT Komatsu	0.043 kg.
			["SN: 30001-UP"] analogs:["0101081230", "01010B1230"]
19.	01643-51232	[4]	WASHER Komatsu	0.024 kg.
			["SN: 30001-UP"]

Gear Pump 705-55-34110 705-55-34090 Hydraulic Triple Pilot Pump 0

Gear Pump 705-55-34110 705-55-34090 Hydraulic Triple Pilot Pump 1

Gear Pump 705-55-34110 705-55-34090 Hydraulic Triple Pilot Pump 2

Theory

Its function is to make oil or other fluid media have a certain pressure, flow rate and flow direction. The most basic form of a gear pump is that two gears of the same size mesh and rotate with each other in a closely fitting casing. The interior of this casing is similar to an "8" shape. The two gears are installed inside. The outer diameter and sides of the gears are in contact with the casing. The body fits closely. The material from the extruder enters between the two gears at the suction port and fills this space.

Gear Pump 705-55-34110 705-55-34090 Hydraulic Triple Pilot Pump 3

About Xinfeng Machinery (XF) parts:

Advantages

Warehouse Display

Packaging and Delivery

FAQ
1.How to quickly and accurately buy products what lneeded?
A:Provide the original parts number to us to check.

2.How long have you been in the excavator
A:We are engaged in excavator parts since 1998

3.lfI don't know the part number,what shouldI do?
A:Please send us size and pictures of old products.

4.What is the warranty of the products?
A:The warranty is 6/12 Months based on the specific product.

5.How long is your delivery time?
A:The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.

6.Which shipping term you can supply?

A:By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)

7.What is your MOQ?
A:Small order and sample order are acceptable

8.Do you have any After-Sales service?
A:Yes!Our
