Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |

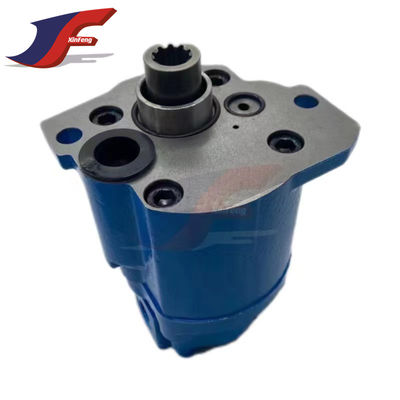

| VOE14633898 | [1] | Pump | ||
| 1 | VOE14578720 | [1] | Shaft | |
| 2 | SA8230-03730 | [1] | O-ring | |
| 3 | SA8230-03170 | [1] | Seal | |
| 4 | SA8230-03180 | [1] | Bearing | |
| 5 | SA8230-03850 | [1] | Ring | |
| 6 | SA8230-03910 | [1] | Ring | |
| 7 | VOE14525799 | [1] | Seal | |
| 8 | SA8230-15520 | [1] | Hanger | |
| 9 | VOE14525800 | [4] | Screw | |
| 10 | SA8230-03720 | [1] | O-ring | |
| 11 | SA8230-15530 | [1] | Hanger | |
| 12 | SA8230-02970 | [1] | Plate | |
| 13 | SA8230-02990 | [1] | Seal | |
| 14 | SA8230-02980 | [2] | Bearing | |
| 15 | VOE14578721 | [1] | Rotator | |
| 16 | SA8230-02950 | [3] | Pin | |
| 17 | SA8230-03110 | [2] | Seat | |
| 18 | SA8230-15620 | [10] | Piston | |
| 19 | SA8230-03880 | [1] | Ring | |
| 20 | VOE14578722 | [1] | Retainer | |
| 21 | SA8230-03120 | [1] | Plate | |
| 22 | SA8230-03010 | [1] | Guide | |
| 23 | SA8230-03360 | [1] | Spring | |
| 24 | VOE14578723 | [1] | Cover | |
| 25 | SA8230-06540 | [4] | Plug | |
| 26 | SA8230-03080 | [3] | Orifice | |
| 27 | SA8230-03130 | [1] | Bearing | |
| 28 | SA8230-15450 | [2] | Plug | |
| 29 | SA8230-03450 | [1] | Plate | |
| 30 | SA8230-03890 | [2] | Pin | |
| 31 | SA8230-03820 | [3] | Bolt | |
| 32 | SA8230-03930 | [1] | O-ring | |
| 33 | SA8230-06960 | [4] | O-ring | |
| 34 | VOE14533604 | [1] | O-ring | |
| 35 | SA8230-03800 | [1] | Bolt | |
| 36 | SA8230-06550 | [4] | Plug | |
| 37 | VOE14525801 | [1] | Spring | |
| 38 | SA8230-03140 | [1] | Seat | |
| 39 | VOE14578725 | [1] | Seat | |
| 40 | VOE14525802 | [1] | Cover | |
| 41 | SA8230-03160 | [1] | Screw | |
| 42 | VOE14578726 | [1] | Spring | |
| 43 | VOE14578727 | [1] | Spring | |
| 44 | SA8230-03770 | [1] | O-ring | |
| 45 | SA8230-03790 | [2] | Bolt | |
| 46 | SA8230-03830 | [1] | Nut | |
| 47 | SA8230-06560 | [2] | Shim | |
| 48 | VOE14558577 | [2] | Shim | |
| 49 | SA8230-03060 | [2] | Shim | |
| 50 | SA8230-03070 | [2] | Shim | |
| 51 | VOE14578730 | [1] | Piston | |
| 52 | VOE14578731 | [2] | Pin | |
| 53 | SA8230-03440 | [2] | Seat | |
| 54 | SA8230-03780 | [2] | Bolt | |
| 55 | SA8230-03150 | [0004] | Spring | |
| 56 | VOE14525806 | [1] | O-ring | |
| 57 | VOE14525807 | [1] | O-ring | |
| 58 | VOE14504587 | [1] | Relief valve | |
| 59 | SA8230-06960 | [1] | O-ring | |
| 60 | VOE14578549 | [1] | Gear pump | |
| 100 | VOE14578732 | [1] | Sealing kit |
Theory
Its function is to make oil or other fluid media have a certain pressure, flow rate and flow direction. The most basic form of a gear pump is that two gears of the same size mesh and rotate with each other in a closely fitting casing. The interior of this casing is similar to an "8" shape. The two gears are installed inside. The outer diameter and sides of the gears are in contact with the casing. The body fits closely. The material from the extruder enters between the two gears at the suction port and fills this space.
About Xinfeng Machinery (XF) parts:
Advantages
Warehouse Display
Packaging and Delivery
FAQ
1.How to quickly and accurately buy products what lneeded?
A:Provide the original parts number to us to check.
2.How long have you been in the excavator
A:We are engaged in excavator parts since 1998
3.lfI don't know the part number,what shouldI do?
A:Please send us size and pictures of old products.
4.What is the warranty of the products?
A:The warranty is 6/12 Months based on the specific product.
5.How long is your delivery time?
A:The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.
6.Which shipping term you can supply?
7.What is your MOQ?
A:Small order and sample order are acceptable
8.Do you have any After-Sales service?
A:Yes!Our
