Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |

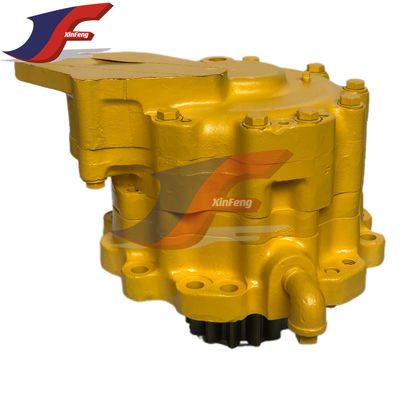

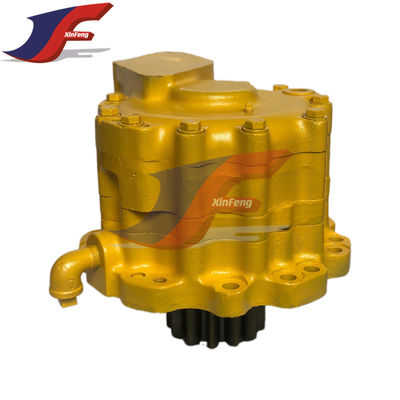

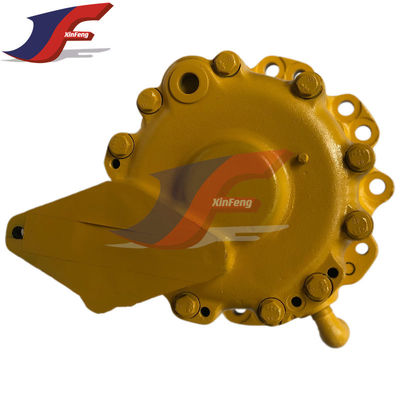

| 203-26-00112 | [1] | SWING MACHINERY A. Komatsu China | ||
| ["SN: 28001-UP"] |$0. | ||||
| 1. | 203-26-56130 | [1] | CASE Komatsu China | |
| ["SN: 28001-UP"] | ||||
| 2. | 07323-30600 | [1] | ELBOW Komatsu | 0.15 kg. |
| ["SN: 28001-UP"] | ||||
| 3. | 07042-30617 | [1] | PLUG Komatsu China | |
| ["SN: 28001-UP"] | ||||
| 4. | 07049-01620 | [2] | PLUG Komatsu | 0.002 kg. |
| ["SN: 28001-UP"] | ||||
| 5. | 06030-22316 | [1] | BEARING Komatsu China | 6.26 kg. |
| ["SN: 28001-UP"] | ||||
| 6. | 04071-00170 | [1] | RING,SNAP Komatsu | 0.2 kg. |
| ["SN: 28001-UP"] | ||||
| 7. | 203-26-51142 | [1] | CARRIER Komatsu China | |
| ["SN: 28001-UP"] | ||||
| 8. | 07043-00415 | [1] | PLUG Komatsu | 0.03 kg. |
| ["SN: 28001-UP"] | ||||
| 9. | 203-26-51521 | [3] | GEAR Komatsu | 0.9 kg. |
| ["SN: 28001-UP"] | ||||
| 10. | 203-26-41240 | [3] | BEARING Komatsu | 0.175 kg. |
| ["SN: 28001-UP"] | ||||
| 11. | 203-26-41250 | [6] | WASHER,THRUST Komatsu | 0.041 kg. |
| ["SN: 28001-UP"] | ||||
| 12. | 203-26-51331 | [3] | PIN Komatsu China | |
| ["SN: 28001-UP"] | ||||
| 13. | 04260-00635 | [3] | BALL Komatsu | 0.012 kg. |
| ["SN: 28001-UP"] analogs:["805750022", "YM24190080001", "21D0986810"] | ||||
| 14. | 07012-00100 | [1] | SEAL,OIL Komatsu China | 0.096 kg. |
| ["SN: 28001-UP"] | ||||
| 15. | 203-26-41191 | [1] | GEAR Komatsu | 4.81 kg. |
| ["SN: 28001-UP"] | ||||
| 16. | 07000-05065 | [1] | O-RING Komatsu China | 0.01 kg. |
| ["SN: 28001-UP"] | ||||
| 17. | 20G-26-11250 | [1] | HOLDER Komatsu China | |
| ["SN: 28001-UP"] | ||||
| 18. | 01011-52015 | [1] | BOLT Komatsu | 0.346 kg. |
| ["SN: 28001-UP"] analogs:["0101183015", "0101182015", "0101162015", "0104142015", "0101163015"] | ||||
| 19. | 203-26-41350 | [1] | RING,SNAP Komatsu China | |
| ["SN: 28001-UP"] | ||||
| 20. | 06033-00217 | [1] | BEARING Komatsu China | |
| ["SN: 28001-UP"] | ||||
| 21. | 203-26-56150 | [1] | GEAR Komatsu | 5.31 kg. |
| ["SN: 28001-UP"] | ||||
| 22. | 04020-01228 | [1] | PIN,DOWEL Komatsu | 0.026 kg. |
| ["SN: 28001-UP"] analogs:["21T3016190"] | ||||
| 23. | 203-26-56140 | [1] | CASE Komatsu China | |
| ["SN: 28001-UP"] | ||||
| 25. | 07043-00312 | [1] | PLUG Komatsu | 0.015 kg. |
| ["SN: 28001-UP"] analogs:["YMR000378", "YM23871030000"] | ||||
| 26. | 01011-51430 | [1] | BOLT Komatsu China | |
| ["SN: 28001-UP"] analogs:["0101131430", "0101161430", "0101181430", "6112216580", "7015061241"] | ||||
| 27. | 01643-31445 | [1] | WASHER Komatsu | 0.019 kg. |
| ["SN: 28001-UP"] analogs:["0164301432"] | ||||
| 28. | 06040-06007 | [1] | BEARING Komatsu | 0.168 kg. |
| ["SN: 28001-UP"] | ||||
| 29. | 203-26-51553 | [1] | GEAR Komatsu | 7.6 kg. |
| ["SN: 28001-UP"] | ||||
| 30. | 06030-06209 | [1] | BEARING Komatsu China | 0.43 kg. |
| ["SN: 28001-UP"] | ||||
| 31. | 203-26-56110 | [1] | GEAR Komatsu | 0.4 kg. |
| ["SN: 28001-UP"] | ||||
| 32. | 06002-30207 | [2] | BEARING Komatsu | 0.35 kg. |
| ["SN: 28001-UP"] | ||||
| 33. | 203-26-56121 | [1] | COVER Komatsu China | |
| ["SN: 28001-UP"] | ||||
| 34. | 07042-30108 | [1] | PLUG Komatsu | 0.008 kg. |
| ["SN: 28001-UP"] analogs:["0704220108"] | ||||
| 35. | 07049-01822 | [4] | PLUG Komatsu | 0.002 kg. |
| ["SN: 28001-UP"] | ||||
| 36. | 01010-51265 | [1] | BOLT Komatsu | 0.074 kg. |
| ["SN: 28001-UP"] analogs:["0101081265"] | ||||
| 37. | 01643-31232 | [1] | WASHER Komatsu | 0.027 kg. |
| ["SN: 28001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 38. | 01011-51465 | [9] | BOLT Komatsu | 0.22 kg. |
| ["SN: 28001-UP"] analogs:["0101161465", "0101181465"] | ||||
| 40 | 203-26-56160 | [1] | FILLER Komatsu China | |
| ["SN: 28001-UP"] | ||||
| 41 | 20X-26-21322 | [1] | GAUGE Komatsu | 0.09 kg. |
| ["SN: 28001-UP"] | ||||
| 42 | 04020-01638 | [2] | PIN,DOWEL Komatsu | 0.064 kg. |
| ["SN: 28001-UP"] | ||||
| 43 | 01010-51655 | [12] | BOLT Komatsu | 0.119 kg. |
| ["SN: 28001-UP"] analogs:["0101061655", "801015613", "0101031655", "0101081655"] | ||||
| 44 | 01643-31645 | [12] | WASHER Komatsu | 0.072 kg. |
Maintainance
Maintenance of the excavator swing gearbox is an important step to ensure its normal operation and extend its service life. Here are some common suggestions for excavator swing gearbox maintenance:
Cleaning and lubriion: Clean the swing gearbox regularly to remove dust and dirt. Use an appropriate cleaner and brush to clean the outside of the gearbox, and make sure to clean the area around the gearbox. At the same time, ensure that there is sufficient lubriing oil inside the gearbox and replace the lubriing oil according to the manufacturer's recommendations.
Check and replace seals: Check the seals of the swing gearbox regularly to ensure that they are intact. If any wear, cracks or leaks are found, the seals should be replaced in time to prevent lubriing oil leakage and dust from entering the gearbox.
Check gears and bearings: Check the condition of the swing gears and bearings regularly. Observe whether there are signs of wear, cracks or other damage. If any abnormalities are found, the damaged gears and bearings should be repaired or replaced in time.
Adjust and tighten bolts: Check the bolts and fasteners on the swing gearbox regularly to ensure that they are tightened. If loose bolts are found, they should be tightened and ensure that they are within the correct torque range.
Check the hydraulic system: The swing gearbox is usually associated with a hydraulic system. Check the pressure and fluid quality of the hydraulic system regularly to ensure it is working properly. Replace the hydraulic oil when necessary and clean or replace the hydraulic filter.
Regular maintenance: Perform regular maintenance and service as recommended by the manufacturer. This may include changing filters, checking electrical connections, calibrating sensors, etc. Follow the maintenance manuals and instructions provided by the manufacturer.
Please note that the above recommendations are for reference only and specific maintenance requirements may vary depending on the excavator model and manufacturer. It is recommended that you refer to the excavator's user manual or consult a professional technician for maintenance recommendations applicable to your specific excavator's swing gearbox.
